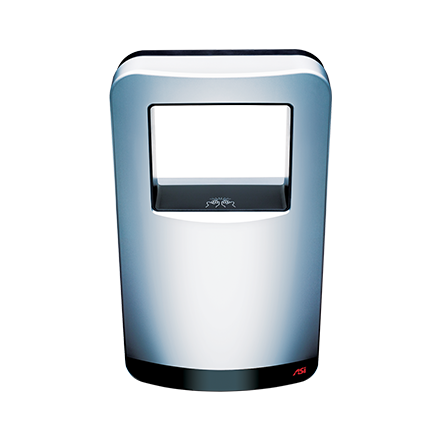

ASI 20200-3 TRI-Umph Hand Dryer
The ASI 20200-3 TRI-Umph is a 277V automatic high-speed hand dryer with a removable triple-filter system, adjustable airflow, and a ceramic evaporator plate with drip tray.
ASI Tri-Umph Hand Dryer Specs and Info Guide | Tri-Umph Cut Sheet | Tri-Umph Mounting Instructions
Model specifications
- Model 20200-3; 277 VAC, 50/60 Hz.
- Infrared, touch-free activation; 1-second hold-on and 60-second automatic shutoff.
- Owner-adjustable airflow and concealed heater controls, including on/off selection and adjustable heat output.
- Removable triple-filter element; the manufacturer describes it as removing airborne solid particles and says owners replace it according to maintenance needs.
- Surface-mounted ABS cover with silver ions and satin-look finish; dimensions are 12-11/16 in. W x 23-1/8 in. H x 7-3/4 in. D. Five-year warranty.
Airflow and water management
Directional air jets blow water droplets from hands toward an absorbent, continuously evaporating ceramic plate. A drip tray collects excess water in heavy-use or high-humidity conditions. The hand chamber is designed for drying in a natural, upright position.
Maintenance
The filter is accessible for manual replacement. The manufacturer recommends wiping the cover with a damp cloth and mild cleaning solution; do not soak or hose down the unit, or use abrasive cleaners.
