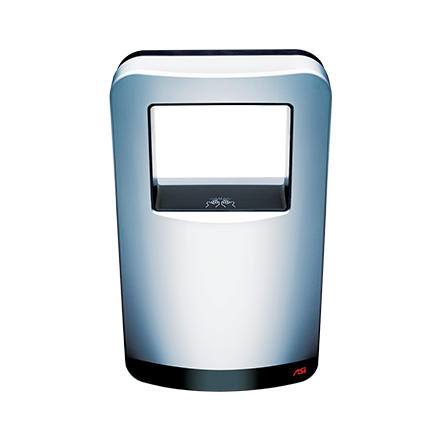

ASI 20200-2 TRI-UMPH Hand Dryer
The ASI 20200-2 TRI-UMPH is an automatic, surface-mounted hand dryer for 208–240 V service, with three-direction airflow, a removable three-layer filter system, and owner-adjustable heat and air speed.
ASI Tri-Umph Hand Dryer Specs and Info Guide | Tri-Umph Cut Sheet | Tri-Umph Mounting Instructions
Three-sided airflow and filtered operation
Users place their hands into the chamber, where infrared sensing starts the dryer automatically. Air blows down and back from vents on three sides; the manufacturer describes drying in about 12 seconds. The removable Super Filter System has HEPA, carbon, and anti-microbial layers. Its ABS cover has an anti-microbial silver-ion treatment.
Moisture management and maintenance
Air pushes water toward an absorbent, continuously evaporating ceramic plate. Excess water is directed to a drip tray. The filter can be cleaned and replaced as needed; the narrow upper housing is designed to make the dryer and wall easier to clean. A concealed security screw and internally secured reinforcement back plate provide the manufacturer-described dual-step removal security.
Specifications
- Model 20200-2: 208–240 VAC, 50/60 Hz; manufacturer data sheet lists 8.1 A maximum.
- ABS plastic cover with silver ions; silver finish.
- Dimensions: 12-11/16 in. W × 23-1/8 in. H × 7-3/4 in. D (322 × 588 × 196 mm).
- Airflow: 55–88 CFM (89–144 m³/h), adjustable by the owner.
- Heater can be switched on or off; the manufacturer also describes adjustable heat output.
- Manufacturer lists a five-year warranty.
The unit is supplied with a power cord and can alternatively be hardwired, according to the manufacturer’s installation manual.
