ASI 1204-66 Shower Curtain Rod, 66" Long

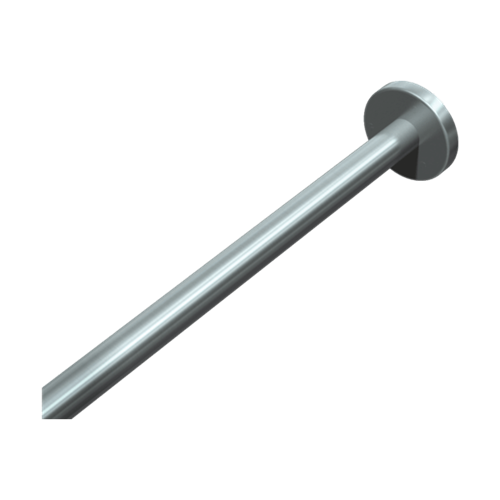

This wall-mounted, 66-inch rod is made from 18-gauge type 304 stainless steel tubing with a satin finish and a 1-1/4-inch outside diameter. Install it in the straight section between two mounting flanges. When correctly installed, the rod and flanges support shower curtains hung on hooks; the rod may rotate in the flanges if turned by hand and will bend or pull from the flanges if significant body weight is suspended from it.
For a standard 72-inch ASI 1200 or 1200-V curtain with standard 1200-SHU hooks, install the rod centerline 74-1/2 inches above the finished floor or 67 inches above the tub rim to obtain 6 inches of bottom overlap. Rods longer than 72 inches require a ceiling hanger, model 1204-C.
