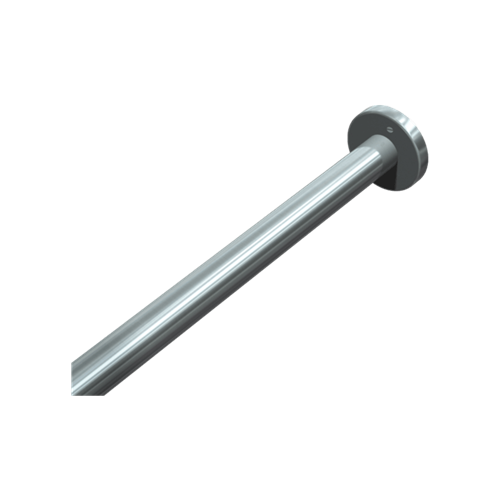

ASI 1204-60 Shower Curtain Rod
This 60-inch wall-mounted rod has 1-1/4-inch-diameter, 18-gauge Type 304 stainless steel tubing with a satin finish. It installs in a straight section between two mounting flanges.
For use with a 72-inch ASI 1200 or 1200-V shower curtain and standard 1200-SHU hooks, ASI specifies a rod centerline of 74-1/2 inches above finished floor or 67 inches above the tub rim to obtain 6 inches of curtain overlap at the bottom. Rods longer than 72 inches require a ceiling hanger.
When properly installed, the rod is held captive by the flanges and may rotate if turned by hand. It supports shower curtains hung on 1200-SHU hooks or other hooks; significant body weight can bend the rod and pull it from the flanges.
