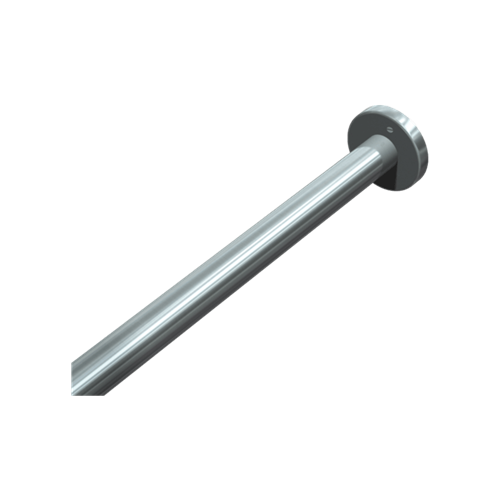

ASI 1204-48 Shower Curtain Rod
The ASI 1204-48 is a 48-inch wall-mounted shower curtain rod for installation in the straight section between two mounting flanges.
Specifications
- Length: 48 inches; diameter: 1-1/4 inches.
- Tubing: 18 gauge (0.048 inch thick), Type 304 stainless steel with a satin finish on exposed surfaces.
- Wall-mounted; installs between two mounting flanges.
For a 72-inch Model 1200 or 1200-V curtain with Model 1200-SHU hooks, install the rod centerline 74-1/2 inches above the finished floor or 67 inches above the tub rim to obtain 6 inches of bottom overlap. Hooks are by others. Rods longer than 72 inches require ceiling hanger Model 1204-C.
When properly installed, the rod is held captive by the flanges and supports shower curtains hung on Model 1200-SHU hooks or other hooks. The rod may rotate in the flanges when turned by hand. Suspending significant body weight can bend the rod and pull it from the flanges.
