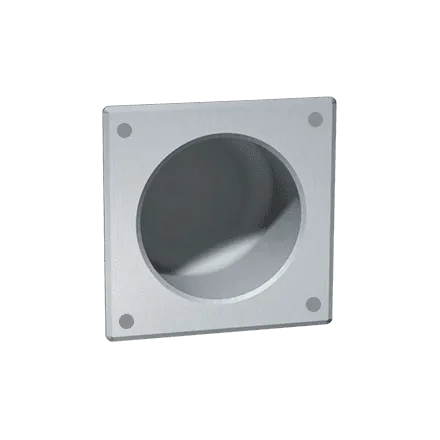

ASI 110-13 Recessed Toilet Tissue Holder, Front Mount, Square
The ASI 110-13 is a square, recessed front-mount holder for one standard toilet tissue roll. It has a Type 304 stainless steel exterior with a satin finish, a glass-blasted satin interior, and front mounting holes.
Product details
- Stores one standard toilet tissue roll.
- Type 304 stainless steel construction; satin-finish exterior and glass-blasted satin-finish interior.
- Square recessed design with front mounting.
- Requires a rough wall opening 5-5/16 inches in diameter and at least 5 inches deep.
- Four #12-24 pin-Torx round-head machine screws are furnished; suitable wall anchors are supplied by others.
Installation and replenishment
Recess the holder into the prepared wall opening and secure it with the furnished screws. ASI's installation guidance for the 2010 ADA Accessibility Standards specifies a paper-holder centerline 19 to 44 inches above the finished floor and a roll leading edge no more than 36 inches from the wall behind the commode; the manufacturer recommends a mounting height of at least 32 inches above the finished floor. Replenish the single roll according to facility maintenance needs.
