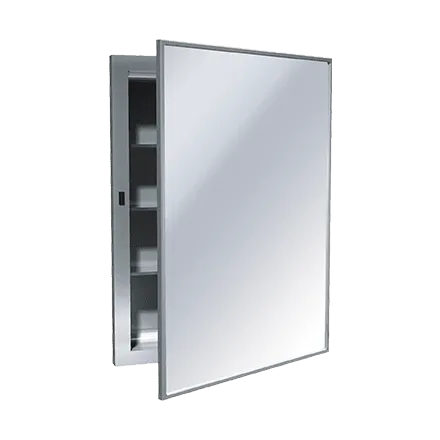

ASI 0952-B Recessed Stainless Steel Medicine Cabinet
The ASI 0952-B is a recessed medicine cabinet for installations with a wall cavity that meets its minimum rough-opening requirements. Its 24 x 26-inch mirror door has a Type 304 stainless steel satin-finish frame, a full-length piano hinge, and a magnetic catch.
Key specifications and features
- Construction: 22-gauge Type 304 stainless steel, alloy 18-8, with a satin finish.
- Overall dimensions: 24 x 26 x 4-7/8 inches (610 x 660 x 124 mm).
- Required minimum rough wall opening: 21-3/4 x 24-1/2 x 3-1/2 inches (552 x 622 x 89 mm).
- Mirror: 1/4 inch (6 mm) glass, guaranteed for 15 years against silver spoilage.
- Storage: three removable stainless steel shelves; reposition them among five internally embossed tracks on each side to change shelf spacing.
- Door: full-length stainless steel piano hinge and magnetic catch. Pull the door to access contents and push it shut manually.
Installation and placement
Mount the cabinet in the wall recess using four #10 pan-head self-threading screws through the concealed holes in the cabinet sides; screws are by others. For general utility mounting, the manufacturer specifies 46 inches above the finished floor to the cabinet bottom or 12 inches above the wash basin. For installation guidance addressing the 2010 ADA Accessibility Standards, the manufacturer specifies a maximum of 40 inches from the finished floor to the mirror’s bottom edge; this is manufacturer guidance, not a blanket compliance guarantee. The reflecting surface begins 3/4 inch below the rough wall opening.
