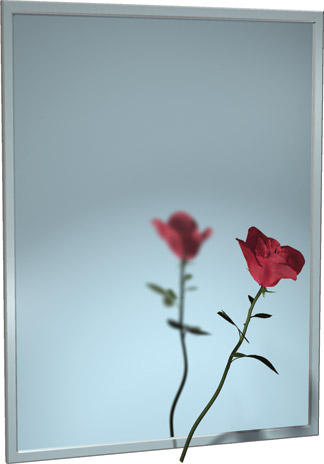

ASI 0620-2624 Chan-Lok Frame Plate Glass Mirror
This listing identifies the ASI 0620-2624 as a 26" W x 24" H mirror, but that model number does not appear in the supplied ASI 0620 Series size list. The list includes model 0620-2424 at 24" W x 24" H. Confirm the required model and dimensions before ordering.
ASI 0620 Series construction and glazing
- Surface-mounted design with a one-piece, roll-formed stainless steel channel that encases the mirror and backing and forms tight mitered corners.
- Frame: 20-gauge Type 304 (18-8) stainless steel with satin-finish exposed surfaces; channel measures 1/2" x 5/8".
- The series sheet describes standard glazing as 1/4" plate/float glass, warranted against silver spoilage for 15 years from the invoice date.
0620 Series installation guidance
ASI’s series instructions call for wall brackets set level and plumb using #8 or #10 pan-head screws, supplied by others. The locking screw is supplied separately, taped to the mirror back; start it before hanging the mirror, then hang the mirror on the brackets and tighten the screw. Confirm that these series specifications apply to the listed model before installation.
