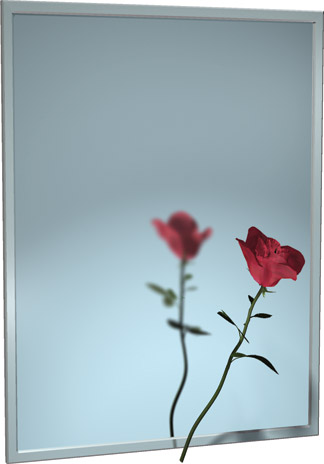

ASI 0620-2424 Chan-Lok Frame Plate Glass Mirror, 24" x 24"
The ASI 0620-2424 is a 24" wide by 24" high, surface-mounted plate glass mirror for commercial installations. Its one-piece, 20-gauge Type 304 stainless steel channel frame encases the mirror and backing, and theft-resistant locking screws secure it to wall brackets.
Verified specifications
- Mirror: 1/4" #1 quality plate glass, silver-coated and hermetically sealed.
- Frame: Type 304 (18-8) stainless steel with a satin finish; the one-piece channel forms tight mitered corners.
- Mounting: Hang the mirror on wall brackets and secure it with the locking screw.
- Warranty: Manufacturer warrants against silver spoilage for 15 years from the invoice date.
Installation guidance
ASI instructs installers to set the wall brackets level and plumb using #8 or #10 pan-head screws (supplied by others). Start the supplied locking screw at the bottom before hanging the mirror, then tighten it. For installation guidance referencing the 2010 ADA Accessibility Standards and 2015 ABA Standards, ASI states that the reflecting surface's bottom edge should be no higher than 40" above the finished floor; confirm project requirements for the specific installation.
