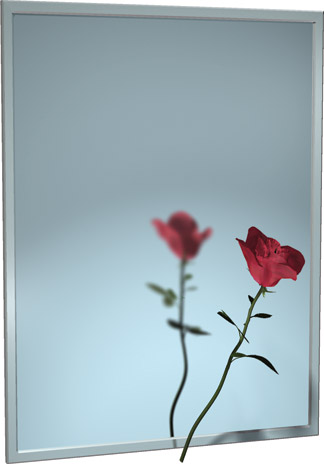

ASI 0620-2422 Chan-Lok Plate Glass Mirror, 24 x 22 in
The ASI 0620-2422 is a 24-inch-wide by 22-inch-high plate glass mirror with a one-piece, roll-formed Type 304 stainless steel channel frame. The satin-finish channel encases the mirror and backing, forming tight mitered corners. The mirror mounts on wall brackets and is secured with theft-resistant screws.
Specifications
- Size: 24 in wide x 22 in high.
- Frame: 20-gauge Type 304 (18-8) stainless steel with satin-finish exposed surfaces.
- Standard plate-glass glazing: 1/4 in thick; warranted against silver spoilage for 15 years from the invoice date.
- Mounting: surface-mounted on wall brackets, with theft-resistant locking screws.
Installation guidance
Install the wall brackets level and plumb using #8 or #10 pan-head screws (by others). Start the locking screw, supplied separately and taped to the mirror back, before hanging the mirror; tighten it at the bottom. The manufacturer’s guidance citing the 2010 ADA Accessibility Standards and 2015 ABA Standards recommends placing the bottom edge of the reflecting surface no higher than 40 in above the finished floor. This guidance is not a determination that an installation complies with accessibility requirements.
