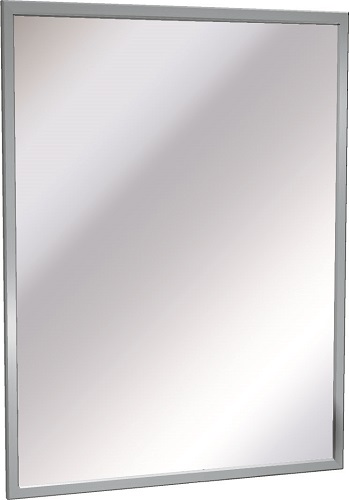

ASI 0620-3024 Chan-Lok Frame Plate Glass Mirror, 30" W x 24" H
The ASI 0620-3024 is a 30" wide x 24" high surface-mounted mirror with standard plate glass and a satin-finish Type 304 stainless steel Chan-Lok frame. Its one-piece, roll-formed channel encases the mirror and backing, with tight mitered corners. Theft-resistant locking screws secure the mirror on wall brackets.
Construction and glass
- Frame: 20-gauge Type 304 stainless steel channel, 1/2" x 5/8", with a satin finish.
- Standard glazing: 1/4" #1-quality plate glass, silver-coated and hermetically sealed with electrolytic copper plating.
- The mirror is warranted against silver spoilage for 15 years from the invoice date.
Installation
Install the wall brackets level and plumb using #8 or #10 pan-head screws (by others). Start the supplied locking screw, taped to the mirror back, before hanging the mirror on the brackets, then tighten the screw at the bottom. For the manufacturer's 2010 ADA and 2015 ABA installation guidance, position the bottom edge of the reflecting surface no higher than 40" above the finished floor.
