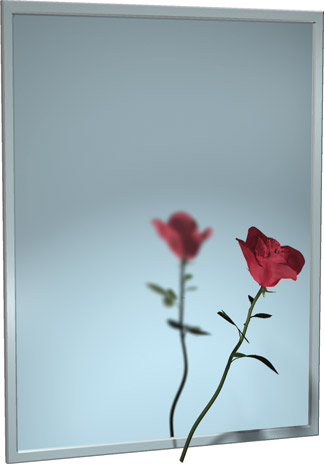

ASI 0620-2026 Chan-Lok Frame Plate Glass Mirror, 20" x 26"
The ASI 0620-2026 is a surface-mounted 20" wide by 26" high plate glass mirror with a satin-finish Type 304 stainless steel Chan-Lok frame. Its one-piece formed channel encases the mirror and backing, and theft-resistant locking screws secure the mirror to wall brackets.
Key specifications
- Mirror: 1/4" thick plate glass.
- Frame: 20-gauge Type 304 stainless steel with a satin finish; the channel measures 1/2" x 5/8".
- Mounting: surface mounted on wall brackets, with a theft-resistant locking screw.
- The manufacturer warrants the standard plate-glass mirror against silver spoilage for 15 years from the invoice date.
Mounting guidance
Install the wall brackets level and plumb with #8 or #10 pan-head screws (by others). Start the supplied locking screw before hanging the mirror, then tighten it at the bottom. For installation guidance related to the 2010 ADA Accessibility Standards and 2015 ABA Standards, the manufacturer specifies that the bottom edge of the reflecting surface should be no higher than 40" above the finished floor.
