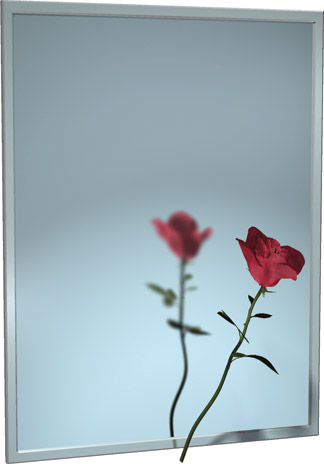

ASI 0620-2620 Chan-Lok Frame Plate Glass Mirror, 26" W x 20" H
The ASI 0620-2620 is a 26" wide x 20" high, surface-mounted plate glass mirror for commercial restrooms. Its one-piece Type 304 stainless steel Chan-Lok frame encases the mirror and backing, forming tight mitered corners. Theft-resistant screws secure the mirror to wall brackets.
Specifications and installation
- Mirror: 1/4" standard plate glass.
- Frame: 20-gauge Type 304 stainless steel with exposed satin-finish surfaces.
- Mounting: A pair of wall brackets; the manufacturer specifies installing the H wall brackets level and plumb with #8 or #10 pan-head screws (by others).
- Start the supplied locking screw at the bottom before hanging the mirror on the brackets, then tighten it to secure the mirror.
- The manufacturer’s installation guidance for 2010 ADA Accessibility Standards and ABA Standards 2015 specifies a maximum 40" AFF height for the bottom edge of the reflecting surface.
- The standard plate glass mirror is warranted against silver spoilage for 15 years from invoice date.
