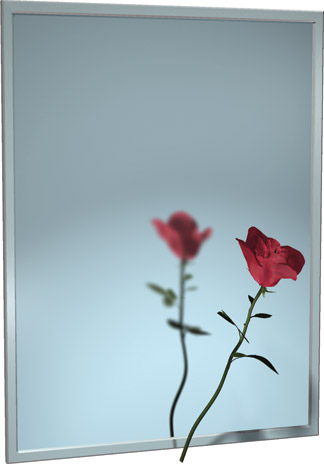

ASI 0620-1618 Chan-Lok Frame Plate Glass Mirror, 16 x 18 in
The ASI 0620-1618 is a 16-inch-wide by 18-inch-high, surface-mounted plate glass mirror. Its one-piece, roll-formed Type 304 stainless steel channel frame has a satin finish and encases the mirror and backing, forming tight mitered corners. Wall brackets and theft-resistant locking screws secure the mirror.
Specifications
- Overall size: 16 in W x 18 in H.
- Frame: 20-gauge Type 304 stainless steel with a satin finish.
- Standard plate glass glazing: 1/4 in thick; warranted against silver spoilage for 15 years from the invoice date.
- Mounting: surface-mounted on wall brackets, with a theft-resistant locking screw.
Installation
Install the H wall brackets level and plumb using #8 or #10 pan-head screws (by others). Start the locking screw before hanging the mirror; the #6-32 x 3/4 in Phillips pan-head locking screw is supplied separately, taped to the mirror back, and is tightened at the bottom. ASI installation guidance referencing the 2010 ADA Accessibility Standards and 2015 ABA Standards says the bottom edge of the reflecting surface should be no higher than 40 in above the finished floor. This guidance is not a blanket compliance determination.
