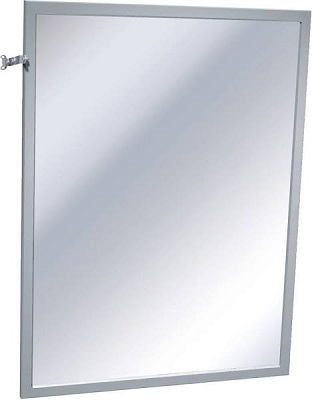

ASI 0600-T1830 Adjustable Tilt Inter-Lok Frame Plate Glass Mirror
The ASI 0600-T1830 is an 18" x 30" adjustable-tilt plate glass mirror for installations that need both forward-tilted viewing and a vertical position for normal viewing. Its Type 304 stainless steel frame has a full-length piano hinge.
Specifications and operation
- 18-gauge Type 304 stainless steel frame with welded, ground-smooth corners and a satin finish.
- Standard glazing is 1/4" plate glass; the manufacturer states a 15-year warranty against silver spoilage.
- Stainless steel control brackets allow the mirror to tilt forward or hold vertically.
- The full-length stainless steel piano hinge is welded to the lower back edge of the frame.
Installation
Attach the tilt brackets to the frame with the supplied No. 8-32 machine screws. Secure the piano hinge to the wall with No. 10 self-tapping screws, supplied by others, and mount the pivot brackets to the wall. Manufacturer guidance for the 2010 ADA Accessibility Standards places the bottom edge of the reflecting surface no higher than 40" above finished floor; confirm placement for the project.
