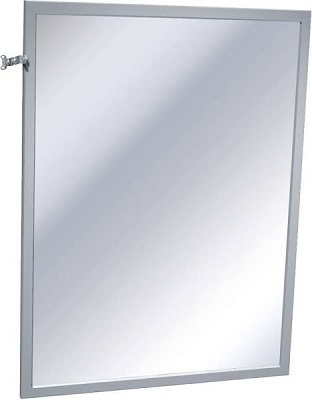

ASI 0600-T1630 Adjustable Tilt Inter-Lok Frame Plate Glass Mirror
The ASI 0600-T1630 is a 16" W x 30" H plate glass mirror that tilts forward for barrier-free viewing or holds vertically for normal viewing.
Specifications
- Standard glazing: 1/4" plate glass, warranted against silver spoilage for 15 years.
- Frame: 18-gauge Type 304 stainless steel with welded, ground-smooth corners and a satin finish.
- A full-width stainless steel piano hinge is welded to the lower back edge of the frame.
Installation guidance
Attach the brackets to the frame with the supplied #8-32 machine screws. Secure the piano hinge to the wall with #10 self-tapping screws (by others), and mount the pivot brackets to the wall. ASI's installation guidance for 2010 ADA Accessibility Standards places the bottom edge of the reflecting surface no higher than 40" above finished floor; this is manufacturer guidance, not a blanket compliance determination.
