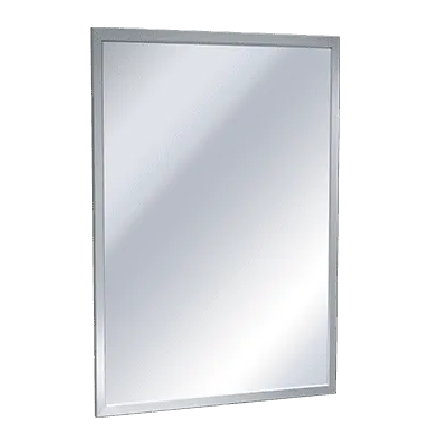

ASI 0600-T1824 Adjustable Tilt Inter-Lok Framed Mirror, 18" x 24"
The ASI 0600-T1824 is an 18" x 24" framed mirror that tilts forward for barrier-free viewing or holds vertically for normal viewing.
Mirror specifications
- Standard glazing: 1/4" plate glass, warranted against silver spoilage for 15 years.
- Frame: Type 304, 18-gauge stainless steel with a satin finish and welded, ground-smooth corners.
- A full-width stainless steel piano hinge is fitted along the bottom; stainless steel tilting brackets support the adjustable viewing position.
Installation notes
Attach the mirror brackets to the frame with the supplied No. 8-32 machine screws. No. 10 self-tapping screws for securing the piano hinge to the wall are by others. ASI's installation guidance for 2010 ADA Accessibility Standards places the bottom edge of the reflecting surface no higher than 40" above finished floor; this is manufacturer guidance, not a blanket compliance determination.
