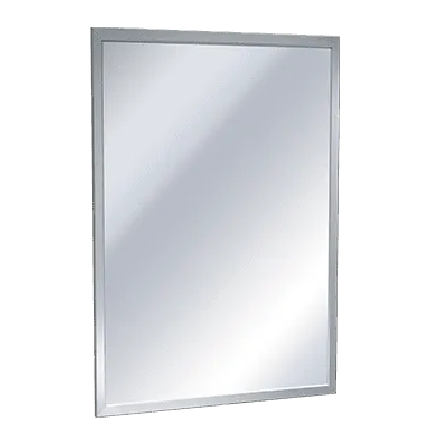

ASI 0600-2224 Stainless Steel Inter-Lok Angle Frame Plate Glass Mirror, 22" W x 24" H
The ASI 0600-2224 is a 22" wide by 24" high surface-mounted mirror with 1/4" plate glass and a satin-finish Type 304 stainless steel Inter-Lok angle frame. Its concealed bracket and theft-resistant back-plate lock secure the mirror to the frame.
Specifications
- Mirror: 1/4" #1 quality polished plate glass, silver coated and hermetically sealed.
- Frame: roll-formed 18-gauge Type 304 (18-8) stainless steel, 3/4" x 5/8", with heliarc-welded corners polished to a satin finish.
- Mounting: surface mounted on a concealed hanging bracket, secured at the top and bottom with tamper-proof set screws; one-piece back plate uses a theft-resistant locking device.
- ASI states standard plate-glass mirrors are warranted against silver spoilage for 15 years from the invoice date.
Installation
Install the bracket level and plumb using #10 self-threading screws, which are by others. Hang the mirror on the bracket and tighten the locking screws at the top and bottom. ASI’s guidance for compliance with the 2010 ADA Accessibility Standards and 2015 ABA Standards calls for the bottom edge of the reflecting surface to be no higher than 40" above finished floor; confirm placement for the project.
