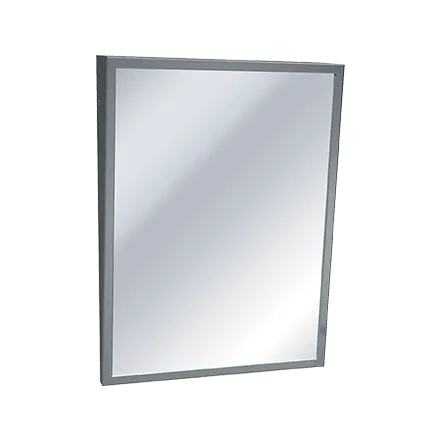

ASI 0535-1824 Fixed Tilt Mirror, 18 x 24 Inches
The ASI 0535-1824 is a surface-mounted fixed-tilt mirror with overall framed dimensions of 18 inches wide by 24 inches high. Its fixed angle is intended to offer visibility for wheelchair users. The frame is 20-gauge Type 304 stainless steel with a satin finish, and the mirror tapers from 4 inches deep at the top to 1 inch at the bottom.
Model details
- Frame: 20-gauge Type 304 (18-8) stainless steel with a satin finish.
- Profile: tapers from 4 inches deep at the top to 1 inch at the bottom.
- Standard glazing: 1/4-inch plate glass, warranted against silver spoilage for 15 years from the invoice date. Other glazing types are available.
- Mounting: surface-mounted with four #10 pan-head self-threading screws, supplied by others; concealed spring tabs lock the flanges onto the screws when properly installed.
Mounting and placement
The back has keyhole slots for hanging on pre-installed screws. Allow 5/8 inch of clearance above the unit to engage the slots. ASI's guidance for the 2010 ADA Accessibility Standards and 2015 ABA Standards is to install the bottom of the reflecting surface no higher than 40 inches above the finished floor; this is manufacturer installation guidance, not a blanket compliance guarantee.
