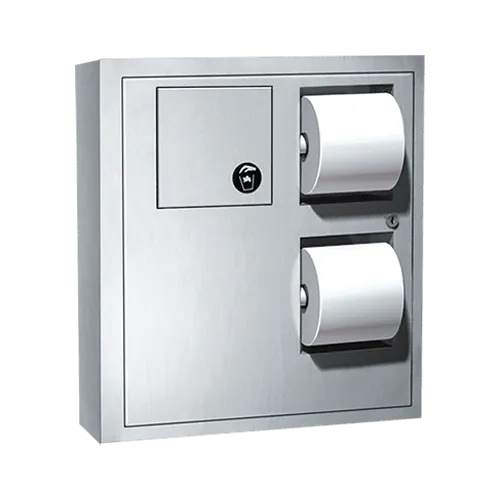

ASI 04833 Surface-Mounted Toilet Tissue Dispenser with Napkin Disposal
The ASI 04833 is a surface-mounted combination toilet tissue dispenser and napkin disposal. Its Type 304 stainless steel cabinet has a satin finish and heavy-duty 11-gauge construction.
Capacity and features
- Holds and dispenses two standard or 1,800-sheet toilet-paper rolls, each 4-1/2" wide by 5-1/4" in diameter.
- Waste capacity: 300 cubic inches (1.3 gallons / 4.9 L).
- Overall dimensions: 17-3/8" x 20" x 4-1/4".
- Includes a stainless steel collar for surface mounting. The tumbler-locked door provides access to the rolls and waste receptacle; the rolls feed freely and their supply level is visible. The self-closing disposal door opens to accept waste.
- Includes two theft- and vandal-resistant rollers (p/n R-004), molded of high-impact-resistant plastic with integral molded-in stainless steel endpins.
- Manufacturer-recommended mounting height: 42-1/2" to 46-1/2" from the finished floor.
Mounting and service
Slide the collar over the rear of the cabinet, then mount it to a partition or wall through the concealed mounting holes using #10 self-threading screws; screws are by others. To service the unit, unlock and open the door to replace rolls and remove the waste receptacle. Empty the receptacle manually according to maintenance needs.
