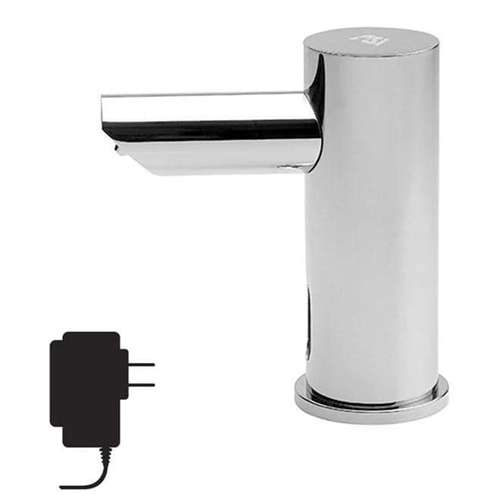

ASI 0391-1AC EZ-Fill Automatic Soap Dispenser
This individual, vanity-mounted dispenser has a chrome-plated brass spout with a polished finish and a 33.8 fl. oz. (1 L) translucent soap bottle. The 1AC configuration is the bright-chrome, AC-powered version. A hands-free sensor activates dispensing, and the front LED indicates function and battery condition.
Installation and operation
- Plan for a 1-1/8" diameter mounting hole and a 5/32" adjacent hole for the anti-rotation pin. The pump/control housing and bottle support mount under the vanity within 24" of the spout shank bottom.
- The AC adapter requires a GFCI outlet under the vanity within 13.5 ft. of the pump/control housing. Confirm outlet access and under-vanity space before installation.
- Soap is replenished manually. Use the pump's fill button to prime the system after filling. The manufacturer specifies clear, non-abrasive liquid soap with viscosity of 100–3800 cP and pH 5.5–8.5; avoid soaps containing reportable salts, chlorides, or alcohols.
ASI 0391-1AC EZ-Fill Soap Dispenser Spec Sheet
ASI EZ-Fill Soap Dispensing System Installation Guide
