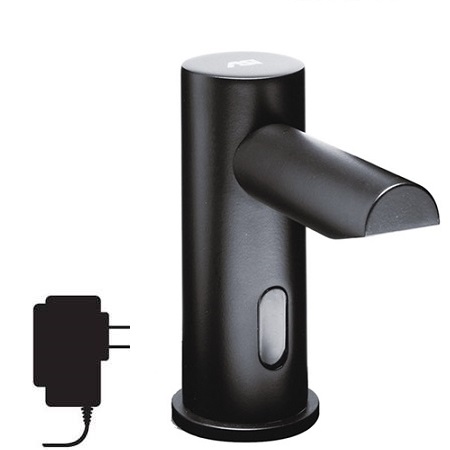

ASI 0394-1AC-41 EZ-Fill Individual Automatic Foam Soap Dispenser
The ASI 0394-1AC-41 is a vanity-mounted, individual automatic foam soap dispenser with a translucent 1-liter (33.8 oz) bottle. This AC-operated version has a matte black finish and an anti-rotation flange.
Key specifications
- Power: AC adapter operation. Connect the adapter to a GFCI outlet under the vanity within 13.5 feet of the pump assembly.
- Mounting: The dispenser head mounts through the vanity; the pump assembly, foam compressor, and bottle support install underneath. Plan space for the assembly, cables, and tubing.
- Soap: Use clear, non-abrasive foaming liquid soap with viscosity of 1–100 cP and pH of 5.5–8.5. The manufacturer advises avoiding soaps containing reportable salts, chlorides, or alcohols.
- Sensor range: 1-3/16"–3-15/16" directly in front of the spout.
Keep the sensor clear of interference from the hands using a nearby faucet. Do not aim it at a mirror or another infrared sensor; the installation guide recommends at least 6 inches between the sensor and directly facing objects. Refill the bottle manually. Use the pump’s fill button to prime the system at setup or after the soap runs out, until soap dispenses from the spout.
