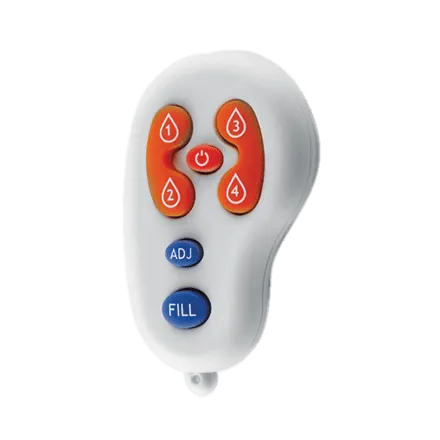

ASI 0390-R EZ-Fill™ Remote Control

This handheld remote adjusts dispensing settings on EZ-Fill liquid soap dispensers and controls up to four dispensers. Use it to select one of four dose settings, pause operation while cleaning or servicing, restore factory settings, or prime the pump after refilling the soap tank. Foam and liquid dispensers use different remotes.

Controls and operation

• Four dispense-volume settings: approximately 0.004–0.013 oz, 0.023–0.030 oz, 0.041–0.054 oz, and 0.071–0.078 oz. Actual dose depends on soap viscosity.
• The ON/OFF command pauses operation for one minute or until pressed again.
• After a tank refill, the FILL command runs the pump for up to one minute to prime the line; press FILL again to stop it.
• Hold the remote directly in front of the dispenser sensor, about 5 inches away, to send commands.
• Supplied with batteries; keep it in a dry location. A key-fob hole allows hanging on a hook or key ring.

The remote is available separately and is included at no charge with an EZ-Fill six-pack, according to the manufacturer.

ASI 0390-R EZ-Fill Remote Control Spec Sheet
ASI EZ-Fill Soap Dispensing System Information Sheet
