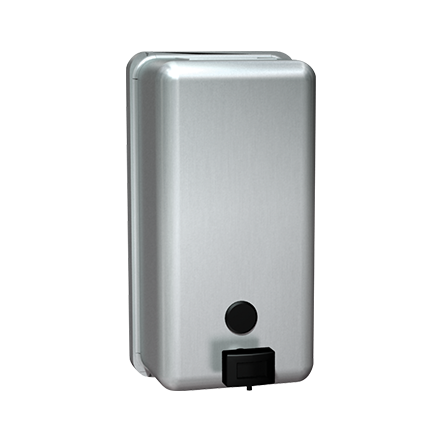

ASI 0359 Vertical Surface-Mounted Foam Soap Dispenser
The ASI 0359 is a vertical, surface-mounted foam soap dispenser for washroom walls or partitions, with a 40 fl. oz. (1.2 L) tank, satin-finish Type 304 stainless steel, and a tamper-resistant refill indicator.
Specifications and operation
- Vertical, space-saving footprint; overall dimensions are 4-13/16" W x 8-3/16" H x 3-15/16" D (122 x 208 x 100 mm); spout projection is 3/4" (19 mm).
- Manual push-button operation with an all-purpose foam soap valve.
- Refill manually through the hinged top door using the supplied special key. The tank feeds until soap drops below the valve intake port.
- Use soap with viscosity of 1–100 mPa·s (cP) and pH 5.5–8.5. The manufacturer advises avoiding soaps containing reportable salts, chlorides, or alcohols.
Mounting guidance
The supplied wall mounting plate attaches to the wall or partition; mounting screws are by others. ASI recommends 42" (1066 mm) above finished floor or at least 6" (152 mm) above the washbasin for general utility. For the manufacturer's stated ADA/ABA installation guidance, place the valve-button centerline no higher than 48" (1219 mm) above finished floor.
