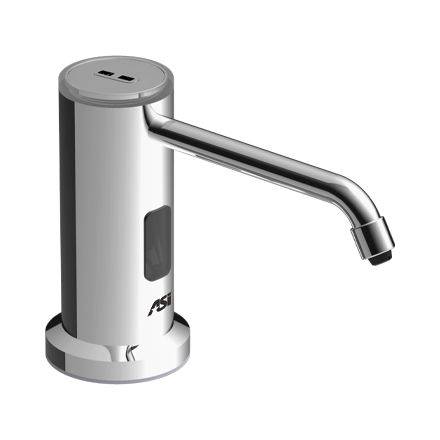

ASI 0339 Automatic Top-Fill Foam Soap Dispenser
This AC-operated, no-touch dispenser mounts on a vanity and holds 50.7 oz. (1.5 L) of foam soap. It has a bright-polished Type 316 stainless steel finish. The anti-theft top opens with the built-in funnel key for filling from above the vanity. An LED ring indicates low soap or incorrect soap, and the smart sensor beeps and flashes to help prevent overfilling.
Installation and soap requirements
- Installation requires a 1-1/2-inch-diameter counter hole. The spout fits counter thicknesses up to 2-1/4 inches; the minimum thickness is 3/32 inch for metal construction. Supplied washers and basin nut secure the unit.
- Install the pump control module and supply tank under the vanity. AC power is required. A mounting template and installation/operation instructions are supplied.
- Use foam soap with viscosity of 1–100 mPa·s (cP) and pH of 5.5–8.5. Refill the tank manually as needed; the top-level sensor sounds when the maximum fill level is reached.
