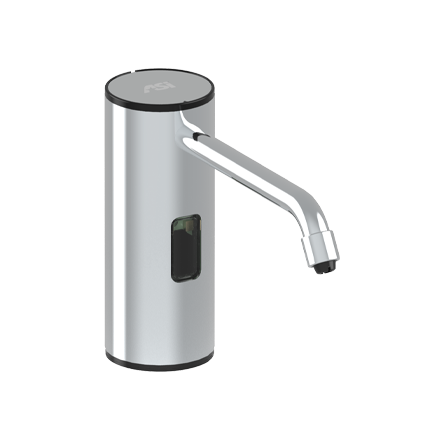

ASI 0335-B Automatic Foam Soap and Foam Hand Sanitizer Dispenser
The ASI 0335-B is a touchless, vanity-mounted dispenser for foam soap or foam hand sanitizer. Its type 304 stainless steel body has a Bright finish, and its 50.7 oz. (1,500 ml) clear supply tank installs under the vanity.
Specifications and installation
- Mounts through a 1-inch-diameter countertop hole using the supplied washers and basin nut; the tank has graduated markings for checking the soap level.
- Powered by four AA-size batteries (not included) or optional AC adapter 72-ACA (not included).
- Automatically dispenses a shot when hands enter the sensor zone. The LED indicates sensor detection and battery or soap condition.
- For foam soap, the specified viscosity range is 1–100 mPa·s (cP), with a pH range of 5.5–8.5.
The pump and tank install under the vanity. Refill the tank manually as needed; consult the operating instructions for refilling and LED diagnostic details.
