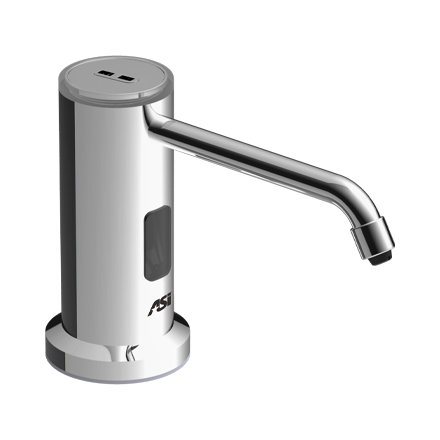

ASI 0338 Automatic Top-Fill Liquid Soap Dispenser
This vanity-mounted, touch-free dispenser has a Type 316 stainless-steel bright-polished finish and a 51 oz. (1.5 L) liquid-soap capacity. Its anti-theft top opens with the built-in key in the funnel. The LED ring indicates low soap or incorrect soap; the Smart Sensor beeps and flashes the ring when the tank reaches its fill limit. The dispenser is AC powered.
Installation and refilling
Installation requires a 1-1/2 in. hole in the countertop. The maximum deck thickness for the spout is 2-1/4 in.; the minimum is 3/32 in. for metal construction. The pump and control module with supply tank install under the vanity, while refilling is done from the top without going under the sink. The tank is replenished manually; the fill-level alert signals when to stop to avoid overfilling.
Use liquid soap or gel hand sanitizer with viscosity of 1–3,000 mPa·s (cP) and pH of 5.5–8.5.
