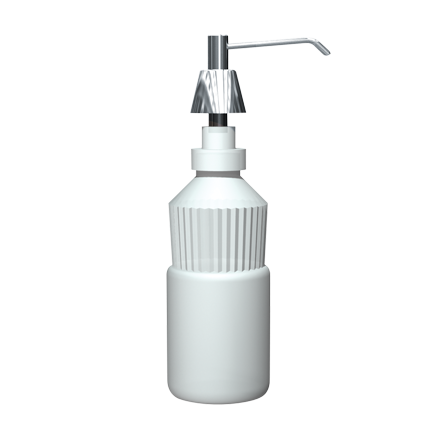

ASI 0332-D Lavatory-Mounted Liquid Soap Dispenser
The ASI 0332-D is a 34 oz lavatory-mounted dispenser with a 6-inch rotating spout and adjustable 4-inch threaded shank. It suits countertops up to 3-1/2 inches thick and dispenses about 0.03 fl oz (0.8 ml) per push when used with soap in the specified viscosity range.
Key specifications
- 34 oz (1.0 L) translucent, shatter-resistant polyethylene reservoir.
- Type 304 stainless steel spout with 6-inch projection; the vandal-resistant spout rotates 360° without damage to the unit.
- Corrosion-resistant valve and chrome-plated brass escutcheon plate.
- Accepts liquid and lotion soaps, synthetic detergents, and antibacterial soaps with viscosity of 50–2,500 cP and pH of 5.5–8.5. Avoid soaps containing reportable salts, chlorides, or alcohols.
- Typically installed through a 7/8-inch-diameter countertop cutout; adjustable shank accommodates countertops up to 3-1/2 inches thick.
Installation and refill
Install adjacent to the lavatory. Refill from above the counter: use the special refill key to unlock the escutcheon, remove the valve body and dip tube to expose the reservoir opening, then pour soap into the opening up to the reservoir neck below the vanity.
