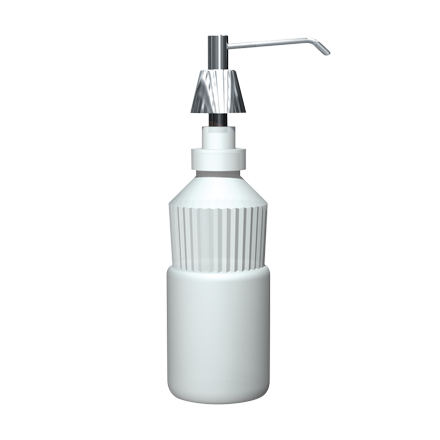

ASI 0332 Lavatory Basin Liquid Soap Dispenser
The ASI 0332 is a vanity-mounted dispenser with a 4 in. stainless steel spout and a vandal-resistant design that allows the spout to rotate 360° without damage to the unit. Its adjustable threaded shank accommodates countertops up to 3-1/2 in. thick.
Specifications and soap requirements
- Type 304 stainless steel spout, chrome-plated brass escutcheon plate and translucent, shatter-resistant polyethylene soap container.
- For liquid or lotion soaps, synthetic detergents and antibacterial soaps within the manufacturer’s specified range: viscosity 100–2,500 mPa·s (cP) and pH 5.5–8.5.
- The manufacturer advises avoiding soaps containing reportable salts, chlorides or alcohols.
- Typical dispensing volume is 0.03 fl. oz. (0.8 ml) per push for liquid soap in the correct viscosity range.
Installation, use and refilling
Install through a 7/8 in. diameter cutout in the countertop. Push down on the spout stem to dispense soap. To refill from above the counter, use the special refill key to unlock the escutcheon, remove the valve body and dip tube from the shank, then pour soap into the reservoir opening up to the neck below the vanity.
