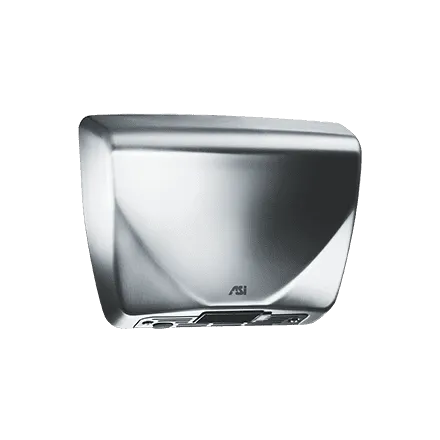

ASI 0185-93 Profile Steel Cover Hand Dryer, Satin Stainless Steel

The ASI 0185-93 is a surface-mounted, touch-free hand dryer for commercial restrooms where a Type 304 satin stainless steel cover and 115–240 VAC universal voltage are desired. The manufacturer specifies drying in under 25 seconds and a one-piece cover.

Specifications

• Finish and construction: Type 304 stainless steel, satin finish; one-piece cover.
• Dimensions: 14-7/16 x 10-13/16 x 3-15/16 inches (367 x 275 x 100 mm).
• Electrical: 115–240 VAC, 50/60 Hz; manufacturer installation data specifies a 20 A supply. Electrical service is provided and connected by others.
• Motor and airflow: 0.25 HP, 7,500 RPM brushless motor with dual ball bearings; 185 CFM (314.5 m³/h).
• Drying and sound: less than 25 seconds; 65 dB-A at 2 m. Heated air is specified at 149°F (65°C) at 77°F (25°C) ambient.
• Operation: sensor activation; a blue LED guides hand placement, and the dryer shuts off after a timeout when hands leave the sensor zone.

Installation and placement

Surface-mount the unit using the supplied mounting hardware and a suitable prepared wall mounting; masonry installations require expansion bolts or anchors. Provide the electrical service before fitting the cover. The manufacturer specifies at least 24 inches (610 mm) on center between multiple dryers and gives reach-dependent sensor-height guidance, including a general-utility range of 44–50 inches above finished floor. The manufacturer identifies the unit as under 4 inches deep and provides accessibility installation guidance; confirm applicable requirements for the project.

The manufacturer lists a 10-year warranty from invoice date. ASI 0185-93 Spec Sheet
