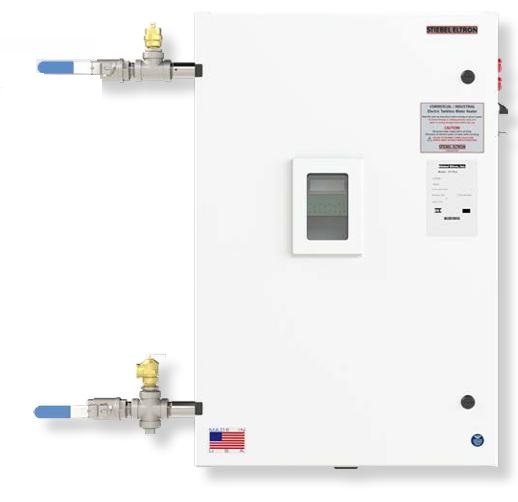

Stiebel Eltron CF Plus 108 kW (575V Delta) 3-Phase Commercial Tankless Water Heater
The Stiebel Eltron CF Plus 108 kW (575V Delta) represents the absolute zenith of high-voltage electric tankless heating, specifically engineered for the most demanding Canadian industrial grids and heavy-duty commercial infrastructures. As the most powerful offering in the elite "Hot Start" series, this unit features a specialized internal heat maintenance system that guarantees instantaneous hot water delivery. By effectively eliminating startup lag and the "cold water sandwich" effect, the CF-Plus-108-575D is the premier solution for massive circulation loops, high-volume multi-fixture facilities, and mission-critical industrial processes where thermal consistency is non-negotiable.
Performance & Electrical Specifications
Optimized for 575V 3-phase Delta systems, this model provides immense heating power with a high-voltage efficiency profile that significantly reduces amperage requirements compared to lower-voltage units.
- Power Output: 108.00 kW at 575V.
- Amperage: 108.44 Amps.
- Breaker Requirement: 125A (3-Pole).
- Temperature Rise: Capable of delivering a staggering 74°F rise at 10 gpm and a robust 37°F rise at 20 gpm.
- Activation Rate: Reliable activation at 2.7 gpm (for DN 25 flowmeter models), ensuring seamless performance in high-demand industrial environments.
- Max Flow Rate: High-capacity internal engineering supports massive flow requirements up to 40 gpm at 60 psi.
Engineering & Durability
- 316L Stainless Steel Heat Exchanger: Constructed with a premium 316L stainless steel heat exchanger and internal piping, offering the highest level of resistance to corrosion, thermal stress, and mineral scaling in aggressive industrial water environments.
- Advanced Microprocessor Modulation: Features electronic closed-loop controls that monitor inlet/outlet sensors and flow rates in real-time. This intelligent modulation ensures the unit consumes only the exact energy required to maintain the setpoint, maximizing efficiency over traditional tank systems.
- Industrial Protection: Comes standard in a NEMA 3 enclosure for superior protection. For specialized environments, NEMA 4 and 4X options are available to support wash-down procedures or highly corrosive atmospheres.
- Comprehensive Safety Systems: Equipped with multiple levels of over-temperature protection, an integrated automatic air vent, and a lead-free brass pressure relief valve.
- Precision Temperature Control: Temperature setpoints are factory-calibrated but fully user-adjustable from 60°F to 180°F (16°C to 82°C) to meet specific building codes or specialized industrial process requirements.
Compliance & Quality Assurance
- Standards: Certified to ANSI/UL Std. 499 and conforms to CAN/CSA Std. C22.2 No.88.
- Warranty: Supported by a 6-year leakage warranty and a 2-year warranty on all parts and materials.
- Origin: Proudly manufactured in the USA.
Buy at the best price or request a professional volume quote for your industrial facility today. Shop online at ProDryers or call our experts to secure the Stiebel Eltron CF-Plus-108-575 for your highest-demand commercial projects.
Download the C Series Commercial Options List
