Stiebel Eltron 236136 Mini-E™ 3.5-1 Thermostatic Electric Tankless Water Heater
3.5 kW • 120V • Advanced Temperature-Controlled Point-of-Use Performance
The Stiebel Eltron Mini-E™ 3.5-1 (Part #236136) represents the highest-output thermostatic model in the Mini-E™ 120V lineup, engineered for single handwashing sinks that demand both precision temperature control and stronger performance. Combining electronic thermostatic regulation with self-modulating tankless technology, this unit delivers consistent, code-compliant hot water while maximizing efficiency.
Precision Thermostatic Control for Reliable Performance

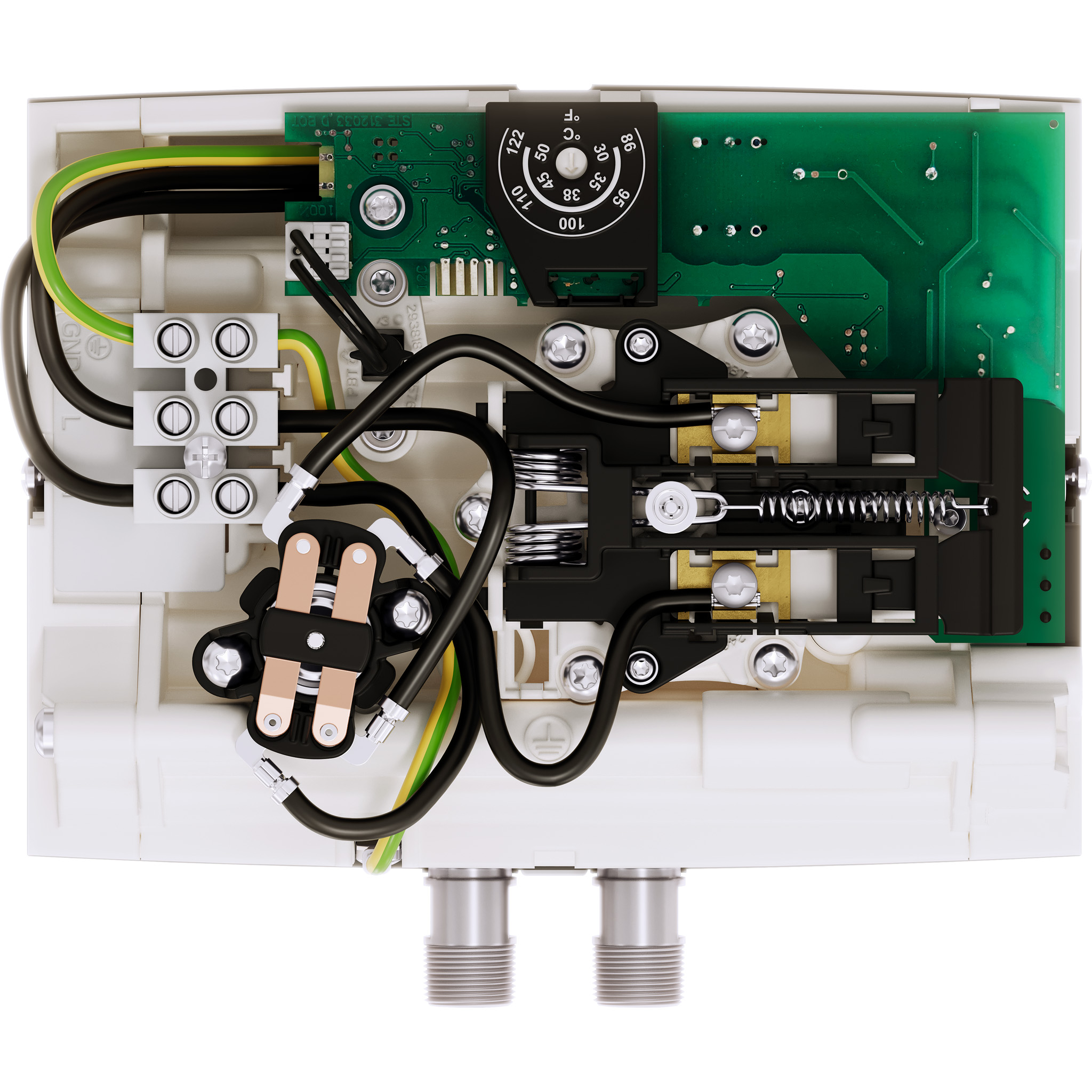

Unlike standard point-of-use heaters that rely on flow restriction alone, the Mini-E™ 3.5-1 features advanced electronic temperature control that continuously monitors and adjusts output. This ensures a stable outlet temperature even with fluctuations in inlet water temperature or flow rate.
The unit is factory-set to approximately 100°F for ideal handwashing, with an adjustable range of 86°F to 122°F, allowing fine-tuning for specific applications and compliance requirements.
High Output for Demanding Conditions
With a 3.5 kW heating capacity at 120V, the Mini-E™ 3.5-1 delivers enhanced temperature rise and supports flow rates up to approximately 0.66 GPM with the supplied aerator, making it ideal for environments where lower-output units may fall short.
This makes it particularly effective in:
- Colder climates
- Higher-traffic handwashing stations
- Installations requiring consistent, comfortable water temperature
Technical Specifications
- Power: 3.5 kW
- Voltage: 120V
- Amperage: ~29A (dedicated circuit required)
- Flow Rate: up to ~0.66 GPM (with supplied aerator)
- Minimum Activation Flow: ~0.30 GPM
- Temperature Range: 86°F – 122°F adjustable
- Factory Set Temperature: ~100°F
- Maximum Pressure: 150 PSI
- Connections: 3/8" O.D.
- Dimensions: ~6.5" H x 7.5" W x 3.25" D
Ideal Applications

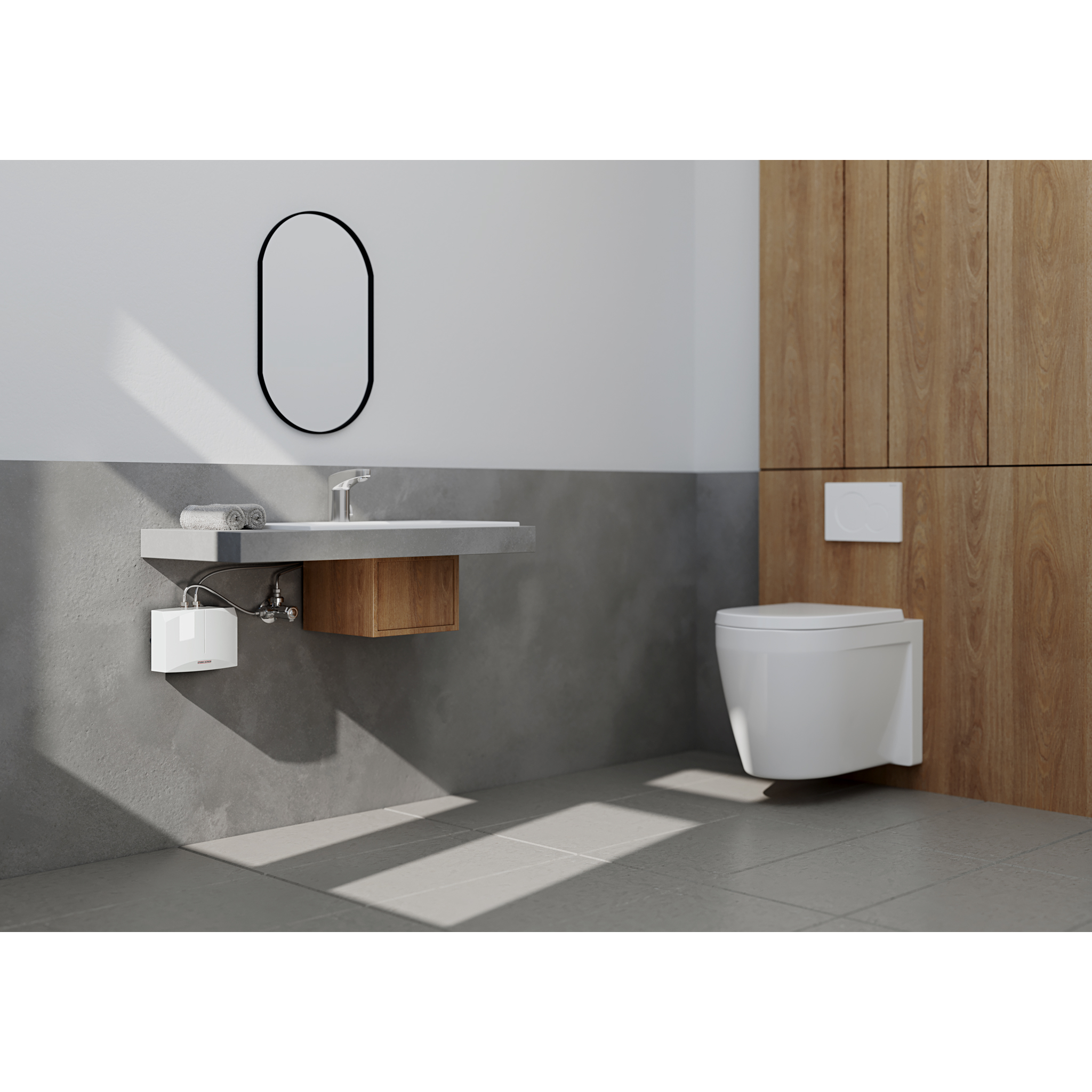

The Mini-E™ 3.5-1 is designed for high-performance handwashing environments, including:
- Commercial restroom sinks
- Healthcare and medical facilities
- Laboratories and compliance-driven installations
- Office and retail environments with frequent use
- Locations with colder incoming water temperatures
This model is especially valuable where consistent temperature and higher output are critical to user comfort and compliance.
Installation & Compliance
The Mini-E™ 3.5-1 is UL and CSA certified and meets NSF/ANSI lead-free standards, ensuring safe and compliant operation. Installation must be performed by a licensed electrician and plumber, with a dedicated 120V circuit (typically 30A) and adherence to all local codes.
Get the Best Price at ProDryers
When specifying a thermostatic tankless water heater, expertise matters. ProDryers is a trusted supplier of Stiebel Eltron products, offering expert guidance and highly competitive pricing.
Buy the Stiebel Eltron Mini-E™ 3.5-1 (236136) today at the best available price, or request a custom quote for bulk or project pricing.
Contact ProDryers now to secure expert support, aggressive pricing, and a precision-engineered tankless solution built for your application.
