Stiebel Eltron 236010 Mini-E™ 3-1 Thermostatic Electric Tankless Water Heater
3.0 kW • 120V • Precision-Controlled Point-of-Use Handwashing Solution
The Stiebel Eltron Mini-E™ 3-1 (Part #236010) is a high-performance thermostatic point-of-use tankless water heater engineered for applications where consistent temperature, higher output, and energy efficiency are essential. Designed specifically for single handwashing sinks, this unit combines on-demand tankless heating with advanced electronic temperature control, delivering a level of performance and reliability that standard non-thermostatic units cannot achieve.
Advanced Thermostatic Control for Consistent Results

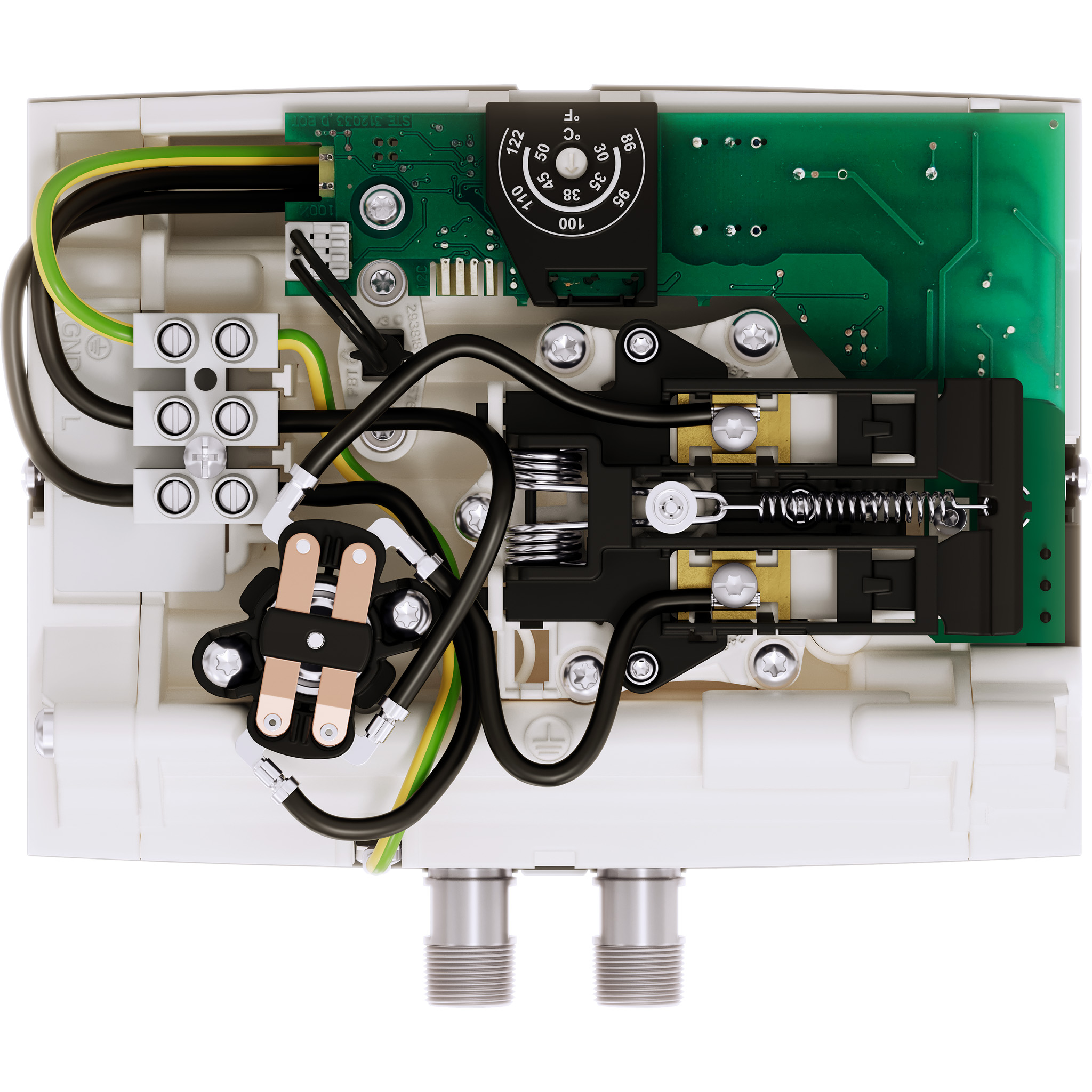

At the core of the Mini-E™ 3-1 is an integrated electronic thermostatic system that actively regulates outlet water temperature. Unlike basic tankless models that rely solely on flow restriction, this unit maintains a stable and precise temperature output, even when inlet water temperature or flow conditions fluctuate.
Factory-set to approximately 100°F, the unit offers an adjustable temperature range of roughly 86°F to 122°F, allowing fine-tuning for specific applications. This ensures:
- Consistent handwashing comfort
- Improved user safety with reduced scald risk
- Compliance with temperature control requirements in regulated environments
Enhanced Output for Demanding Conditions
With a 3.0 kW heating capacity, the Mini-E™ 3-1 provides a noticeable increase in temperature rise and flow capability over lower-wattage thermostatic models. Delivering approximately 0.45–0.55 GPM, it is well-suited for installations where higher demand or colder incoming water temperatures require additional heating power.
The system’s self-modulating technology continuously adjusts energy consumption based on real-time demand, optimizing both performance and efficiency.
Technical Specifications
- Power: 3.0 kW
- Voltage: 120V
- Amperage: ~25A (dedicated circuit required)
- Flow Rate: ~0.45–0.55 GPM
- Minimum Activation Flow: ~0.30–0.40 GPM
- Temperature Range: ~86°F – 122°F adjustable
- Factory Set Temperature: ~100°F
- Maximum Pressure: 150 PSI
- Connections: 3/8" O.D.

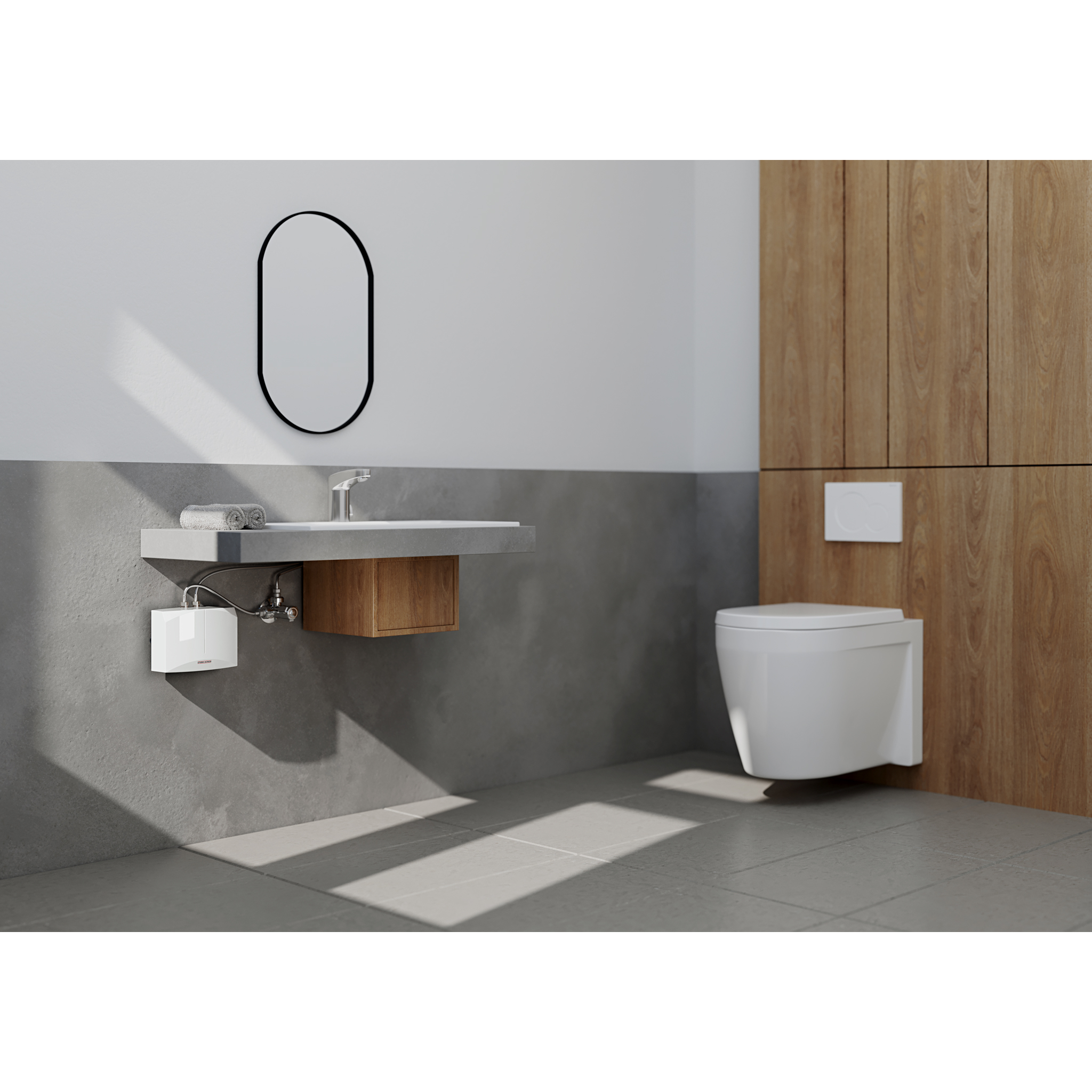

- Compact under-sink design
Ideal Applications
The Mini-E™ 3-1 is engineered for environments where precision temperature control and higher output are required:
- Commercial restroom sinks
- Healthcare and medical facilities
- Laboratories and regulated environments
- Office and retail handwashing stations
- Installations in colder climates requiring increased heating capacity
This model is particularly effective where standard tankless units cannot maintain consistent temperature performance.
Installation & Compliance
The Mini-E™ 3-1 meets stringent safety and compliance standards, including thermostatic control requirements for many commercial applications. Installation must be completed by a licensed professional, with a properly sized dedicated electrical circuit and adherence to all local codes.
