Guardian G1765 Eye/Face Wash, Recess Deck Mounted, Push-Down Valve

Our Price: $584.12
List Price: $747.30
Savings: $163.18

Average lead time 7-10 business days

Product Code:
G1765
Availability:
In Stock

Average lead time 7-10 business days

Product Code:
G1765
Availability:
In Stock

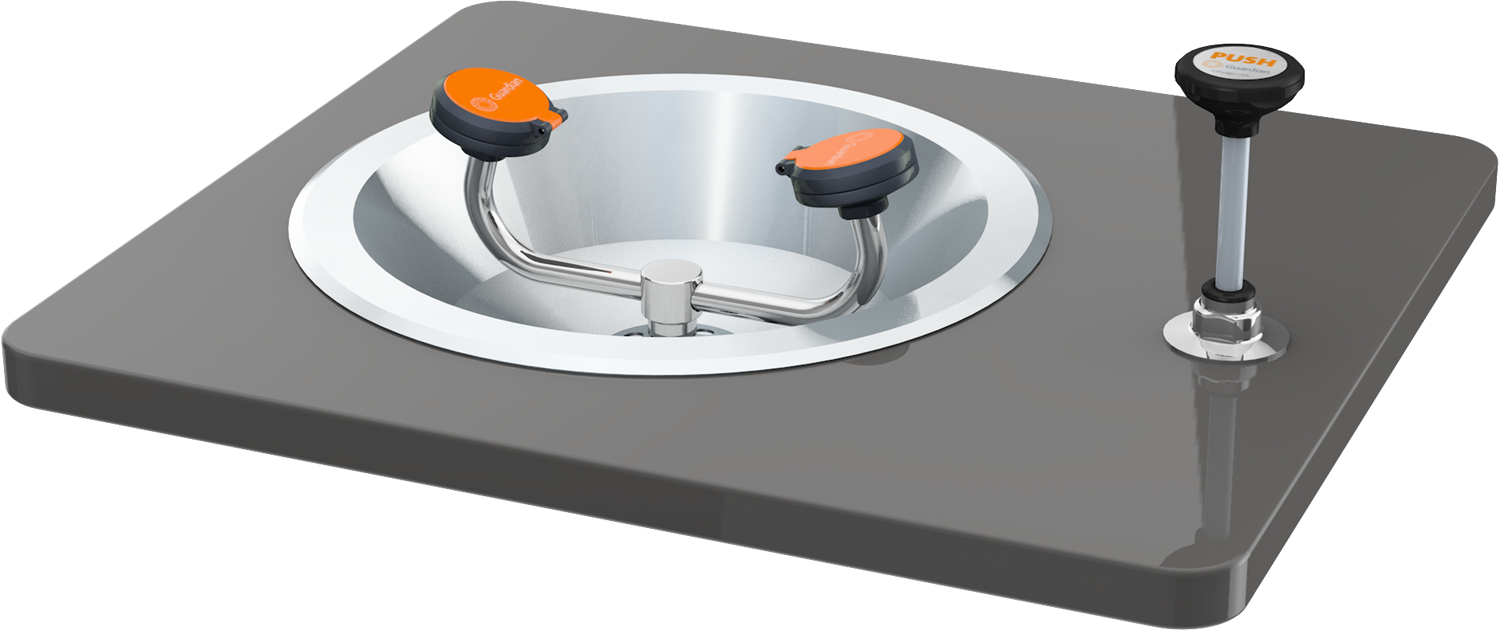

Guardian G1765 Recessed Eye/Face Wash

Model G1765 Description

Eye/face wash for recessed mounting in countertop. Two large FS-Plus™ spray-type outlet heads deliver a flood of water for rinsing eyes and face.

  • Spray Head Assembly: Two FS-Plus™ spray heads. Each head has a "flip top" dust cover, internal flow control and filter to remove impurities from the water flow.
  • Valve: 1/2" IPS brass stay-open ball valve. Valve mounts below counter and is activated by push-down knob.
  • Bowl: 13" diameter flanged stainless steel bowl for recessed mounting in countertop. Furnished with all hardware necessary for installation in counter.
  • Valve supply: 1/2" NPT male inlet.
  • Waste: 1-1/4" NPT female outlet.
  • Sign: ANSI-compliant identification sign.
  • Quality Assurance: Unit is completely assembled and water tested prior to shipment.

Spec Sheet Links

Download the G1765 Eye/Face Wash Spec Sheet

Available Options (Call 888-503-7937 for fast help)

  • [DC] Stainless steel dust cover for each spray head
  • [T] Chrome plated brass tailpiece and trap with 1-1/2" IPS waste connection.
  • [TP] 1-1/2" OD chrome plated brass tailpiece.
  • [G6020] Thermostatic mixing valve to blend hot and cold water to deliver tepid water. Valve has flow capacity of 13 gallons (49 liters) per minute at 30 PSI (2.1 bar) pressure drop. Valve can be used to supply emergency eyewash, eye/face wash or drench hose unit. Depending on water supply size and pressure, valve can supply multiple units.
