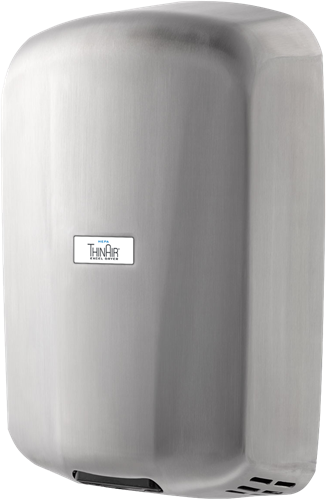

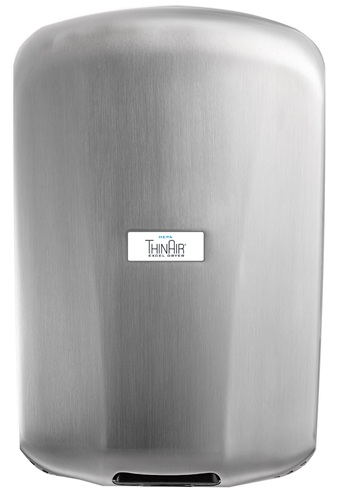

Excel Dryer TA-SBH ThinAir ADA Compliant Hand Dryer with HEPA Filter, Brushed Stainless Steel

Our Price: $896.00
List Price: $1,120.00
(You save $224.00)

Average lead time of 3-5 business days

SKU:
TA-SBH
Availability:
In Stock

Average lead time of 3-5 business days

SKU:
TA-SBH
Availability:
In Stock

Choose Your Product Options:

Adding to cart… The item has been added

Excel Dryer TA-SBH ThinAir ADA Compliant Hand Dryer with HEPA Filtration

Always get the absolute best price on the Excel Dryer TA-SBH ThinAir Hand Dryer with HEPA Filter at ProDryers. We are a top trusted national, master distributor for Excel Dryer. The new TA-SBH ThinAir is a great addition to the Excel Dryer family expanding the industry standard Xlerator name with a new thin designed high speed hand dryer that satisfies ADA depth requirements as a surface mount unit. The ThinAir requires nothing more than a simple wall mount installation eliminating the older methods of recessing hand dryers into the wall to achieve ADA compliance. As an informational resource, read more on the differences of handicap accessible vs. ADA compliance with hand dryers. The Xlerator hand dryer is still the #1 selling and #1 suggested Excel Dryer product. However, if ADA compliance is a requirement, the new TA-SBH ThinAir is the perfect solution! ADA guidelines state that fixtures mounted above 27" must not protrude more than 4" from the wall.

Features:

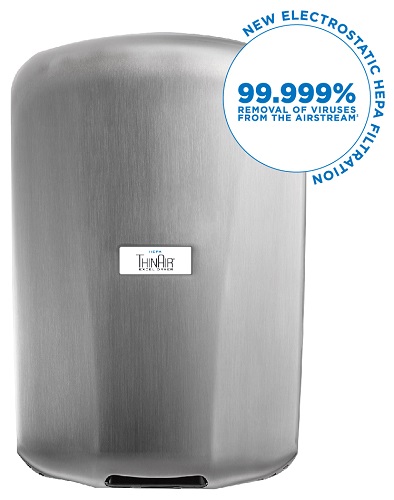

  • Electrostatic HEPA Filtration System: Removes 99.999% of viruses and 99.97% of potentially present bacteria at 0.3 microns from the airstream.
  • 15 second dry time (based on third party testing performed by SGS International on standard Thin Air hand dryer to 0.2g or less of residual moisture)
  • Wattage: 950 Watts w/ heat; as low as 300 Watts (without heat)
  • 5 year warranty from Excel Dryer; a top trusted manufacturer in the U.S.A.
  • Adjustable speed and sound to fit even quiet operational requirements
  • On/Off heat option
  • Washable pre-filter
  • Meets 4" ADA protrusion guidelines to accommodate the visually impaired
  • Automatic sensor activated

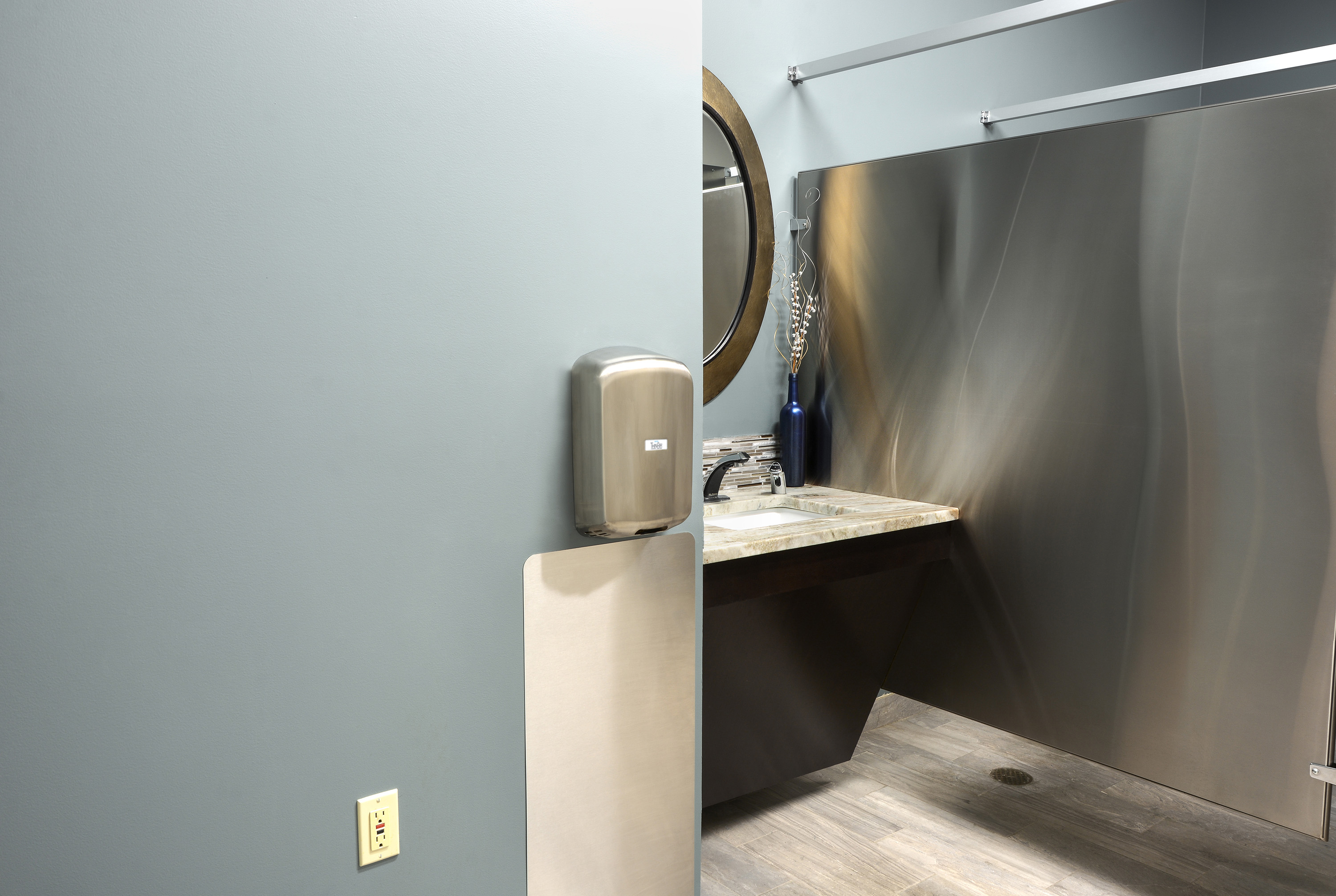

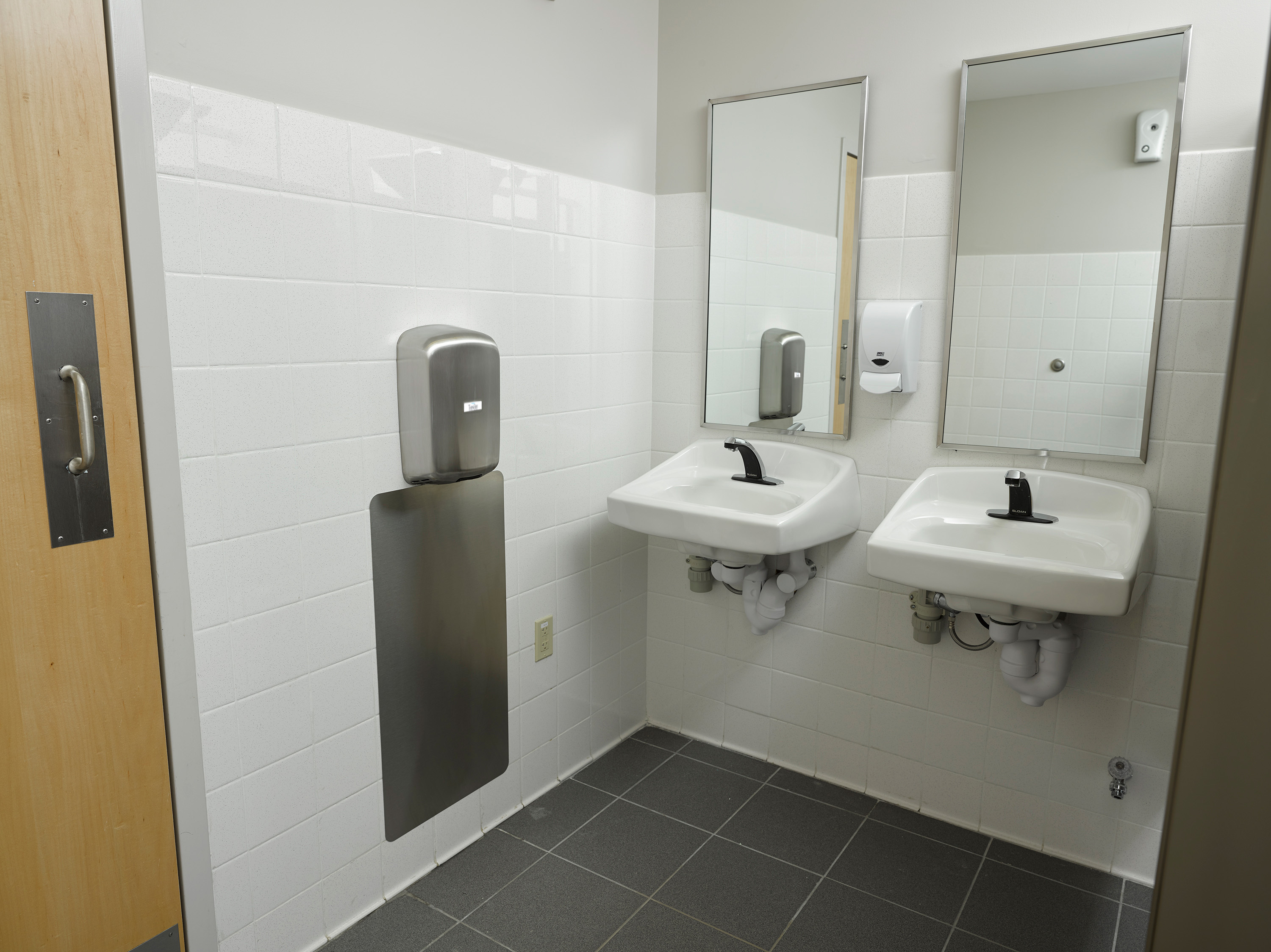

  • Surface mounted (wall mounted) and still ADA compliant
  • 110-120 volt uses 8 amp, 208-240 uses 4 amp (if you require the 230 volt, 50 Hz option for export, please call us at 888-503-7937)

Dimensions:

Width: 9 5/32" (233 mm) Height: 13 15/16" (354 mm) Depth: 4" (102 mm)

Spec Sheet Downloads:

Spec Sheet
Technical Data Sheet


Expert Insight

Excel Dryer TA-SBH ThinAir ADA Compliant Hand Dryer

Why We Recommend the Excel Dryer TA-SBH ThinAir

The Excel Dryer TA-SBH ThinAir combines high-speed hand drying, electrostatic HEPA filtration, and a brushed stainless steel cover in a cabinet that projects only 4 inches from the wall. We often recommend this model when filtered drying air and ADA-conscious surface mounting are both project priorities. Its approximately 15-second dry time, adjustable speed and sound, selectable heat, washable pre-filter, and touch-free sensor provide flexible performance without requiring a recessed installation.


Best Applications

The TA-SBH ThinAir is well suited for healthcare buildings, schools, universities, offices, restaurants, hotels, government facilities, and renovation projects where cutting into the wall is impractical. Its brushed stainless steel finish coordinates with common commercial restroom accessories, while HEPA filtration provides an added level of air treatment where filtered airflow is specified or preferred.


Quick Tip

Include both the electrostatic HEPA filter and washable pre-filter in the restroom’s preventive-maintenance schedule. Inspection and service intervals should reflect restroom traffic and environmental conditions, since loaded filters can restrict airflow and affect drying performance. Keeping the correct replacement filters available can help prevent unnecessary downtime.


Common Question

Does the TA-SBH ThinAir require a recess kit for ADA compliance?
No recess kit is required solely to reduce its projection. The TA-SBH has a 4-inch-deep cabinet designed to satisfy ADA protrusion guidelines when surface mounted. The complete installation must still comply with applicable mounting-height, reach-range, clear-floor-space, circulation-path, and electrical requirements.
