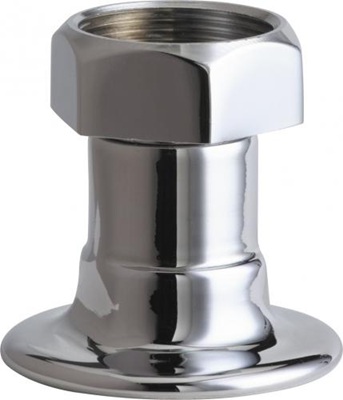

Chicago Faucets 261-JKABCP
The Chicago Faucets 261-JKABCP is a genuine OEM Straight Inlet Arm (Straight Shank Assembly) designed specifically for wall-mounted manual faucets in the 65 and 225 Series. This high-quality supply arm serves as the rigid connection point between the facility's water lines and the faucet body. Finished in high-luster polished chrome and featuring a 2-1/8" diameter integral flange, it provides a clean, professional appearance by concealing the wall penetration.
The 261-JKABCP is the standard straight-arm solution for 65-Series (3-3/8" centers) and 225-Series (3" vertical centers) wall-mount fixtures. Installation Tip: Because this arm is straight rather than offset, your plumbing must be roughed-in at the exact width of your faucet body centers; there is no side-to-side adjustment once installed. Pro Tip: This arm uses a 1-1/4"-16 UN female thread outlet to receive the faucet body and a 1/2" NPT female thread for the wall connection. When mounting, ensure your wall nipples are perfectly level to prevent the faucet body from sitting at an angle. Lead Safety Note: Featuring ECAST® construction, this component is fully compliant with lead-free mandates for safe drinking water. Buy at the best price or request a high-volume quote at ProDryers today by calling 888-503-7937!
