Chicago Faucets WJKABCP

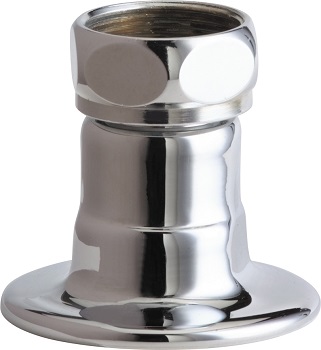

The Chicago Faucets WJKABCP is a genuine OEM straight inlet supply arm designed for wall-mounted manual faucet installations. Unlike "slip flange" models, this arm features an integral flange, meaning the decorative wall plate is cast or permanently attached to the arm itself for maximum stability and a streamlined look. It provides a 2" projection from the wall and is equipped with a 1/2" NPT female thread inlet and a 1-1/16"-18 UNEF female thread outlet. Finished in a professional polished chrome (CP), it is built to withstand the rigors of commercial use. As an ECAST® product, it is manufactured from lead-free brass, ensuring it meets all federal mandates for safe potable water.
Expert Insight:
The WJKABCP is the preferred choice for installations where you want a more permanent, high-end feel. Because the flange is integral (one-piece), you don't have to worry about a loose escutcheon rattling or sliding down the arm over time. Installation Tip: Precision is everything with this part. Since the arm is straight and the flange is fixed, your wall nipples must be perfectly level and spaced exactly to match your faucet's centers. Pro Tip: If your wall nipples are recessed too far back into the tile, you may need a 1/2" NPT brass extension to allow the integral flange to sit flush against the finished wall surface. This arm is commonly found on 445 and 540 series faucets. Need to verify if your faucet body is compatible with the 1-1/16"-18 UNEF thread? Call ProDryers at 888-503-7937!
