Bobrick B-9806x24 Description
Bobrick B-9806 series grab bar shall be stainless steel with satin finish or matte black, as specified. Grab bar shall have type 303, 14-gauge 1/16" (2mm) stainless steel tubing. 1-1/2" (38mm) outside diameter. Clearance between the grab bar and the wall shall be 1-1/2" (38mm). Concealed Mounting Flanges shall be 5/16" (8mm) thick, threaded solid stainless steel with satin finish or matte black, as specified. 2" (50mm) diameter, equipped with three screw holes for attachment to wall. Flange Covers shall be 1/8" (3mm) thick, threaded solid stainless steel with satin finish or matte black, as specified. 2" (50mm) diameter and shall conceal the mounting screws. Threaded solid support posts shall have 1/4" (6mm) wall thickness, 1" (25mm) outer diameter securing the flange covers. A metric M8 hex screw, with a curved washer shall connect the grab bar's tube with the flange. Grab bar shall comply with accessible design (including ADAAG in the USA) for structural strength.
Product Overview

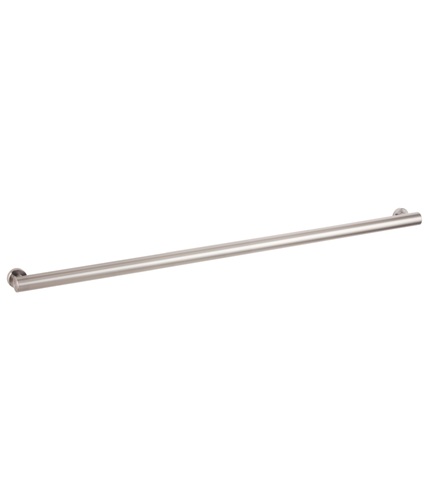

The Bobrick B-9806x24 Fino Collection Straight Grab Bar is designed for secure support and accessibility in commercial restroom environments. Constructed from robust stainless steel, this grab bar offers both durability and stability for users, complying with ADA standards. Its satin finish provides an appealing aesthetic while ensuring longevity in high-traffic areas.
Key Features
- Durable stainless steel construction for long-lasting use.
- Designed to meet ADA compliance for safety and accessibility.
- Concealed mounting flanges enhance appearance while securing the bar.
- 1-1/2" diameter grip for comfortable handling.
- Available in satin finish or matte black to match restroom decor.
