Bobrick B-9806x18 Description
Bobrick B-9806 series grab bar shall be stainless steel with satin finish or matte black, as specified. Grab bar shall have type 303, 14-gauge 1/16" (2mm) stainless steel tubing. 1-1/2" (38mm) outside diameter. Clearance between the grab bar and the wall shall be 1-1/2" (38mm). Concealed Mounting Flanges shall be 5/16" (8mm) thick, threaded solid stainless steel with satin finish or matte black, as specified. 2" (50mm) diameter, equipped with three screw holes for attachment to wall. Flange Covers shall be 1/8" (3mm) thick, threaded solid stainless steel with satin finish or matte black, as specified. 2" (50mm) diameter and shall conceal the mounting screws. Threaded solid support posts shall have 1/4" (6mm) wall thickness, 1" (25mm) outer diameter securing the flange covers. A metric M8 hex screw, with a curved washer shall connect the grab bar's tube with the flange. Grab bar shall comply with accessible design (including ADAAG in the USA) for structural strength.
Product Overview

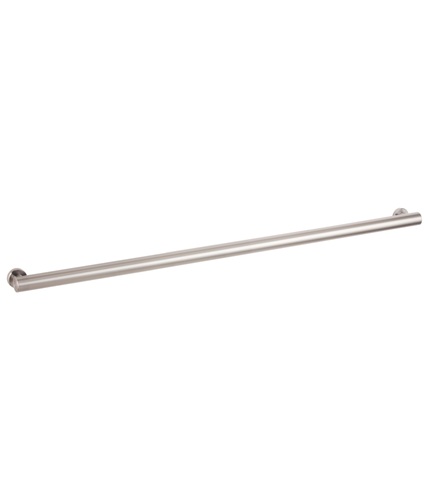

The Bobrick B-9806x18 Fino Collection Straight Grab Bar is designed for commercial restrooms, ensuring safety and stability for users. Its robust stainless steel construction offers long-lasting durability, making it appropriate for high-traffic environments. The satin finish enhances its resistance to corrosion, while the concealed mounting flanges maintain a clean aesthetic, suited for various design schemes.
Key Features
- Durable stainless steel construction for longevity in high-traffic areas.
- Satin finish reduces the risk of rust and corrosion over time.
- Concealed mounting flanges provide a clean and streamlined look.
- 1-1/2" diameter enables firm grasp for users, enhancing safety.
- Meets ADAAG compliance for structural strength, ensuring accessibility.
