Bobrick B-9806x42 Description
Bobrick B-9806 series grab bar shall be stainless steel with satin finish or matte black, as specified. Grab bar shall have type 303, 14-gauge 1/16" (2mm) stainless steel tubing. 1-1/2" (38mm) outside diameter. Clearance between the grab bar and the wall shall be 1-1/2" (38mm). Concealed Mounting Flanges shall be 5/16" (8mm) thick, threaded solid stainless steel with satin finish or matte black, as specified. 2" (50mm) diameter, equipped with three screw holes for attachment to wall. Flange Covers shall be 1/8" (3mm) thick, threaded solid stainless steel with satin finish or matte black, as specified. 2" (50mm) diameter and shall conceal the mounting screws. Threaded solid support posts shall have 1/4" (6mm) wall thickness, 1" (25mm) outer diameter securing the flange covers. A metric M8 hex screw, with a curved washer shall connect the grab bar's tube with the flange. Grab bar shall comply with accessible design (including ADAAG in the USA) for structural strength.
Product Overview

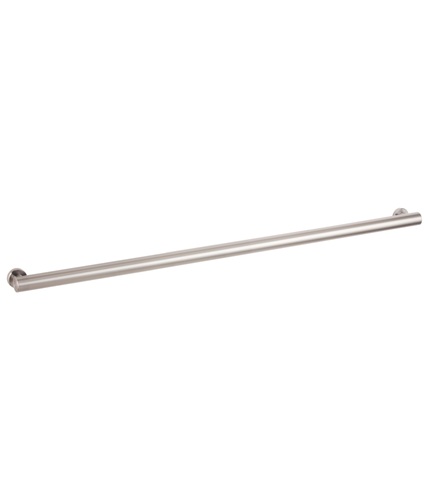

The Bobrick B-9806x42 grab bar is designed for durability and safety in commercial restrooms. With its robust stainless steel construction and a sleek satin finish, this 42" grab bar provides essential support for users needing assistance. The thoughtful design ensures compliance with accessibility standards while blending seamlessly with restroom decor.
Key Features
- Durable stainless steel construction for long-lasting use
- 1-1/2" diameter ensures a comfortable grip
- Concealed mounting for a clean aesthetic
- Flange covers hide mounting screws for enhanced appearance
- Designed to meet ADA accessibility standards for safety
