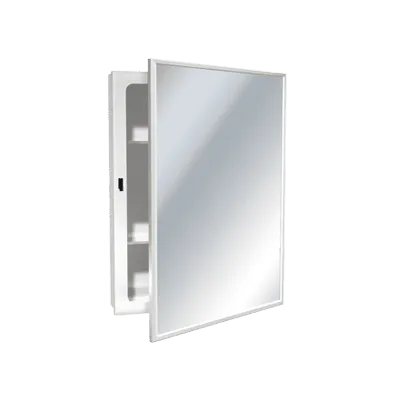

ASI 8339 Surface-Mounted Medicine Cabinet
The ASI 8339 has a one-piece drawn cold-rolled steel cabinet with a white powder-coated finish, a stainless steel channel-framed mirrored door made with 1/4" plate glass, a continuous piano hinge, and a magnetic catch. Two adjustable white enamel steel shelves provide configurable interior storage. Overall dimensions are 16-3/16" W x 22-3/16" H x 5" D.
Pull the door open to access the contents; push it manually to engage the magnetic catch. Shelf spacing adjusts using the cabinet’s internal embossed clip tracks.
Mounting
This surface-mounted cabinet attaches through four holes in the back. Installation screws are by others: ASI specifies four #10 pan-head self-threading screws. For general utility mounting, ASI recommends positioning the bottom of the unit 46" above the finished floor or 12" above the washbasin. As manufacturer guidance for the 2010 ADA Accessibility Standards, ASI specifies a maximum 40" AFF height for the bottom edge of the mirror.
