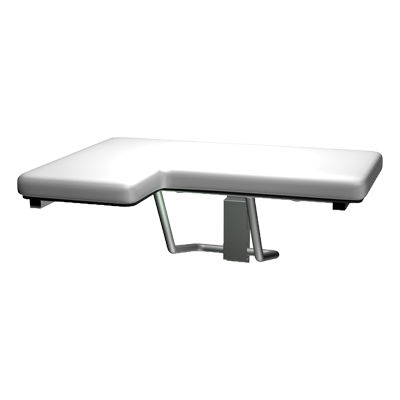

ASI 8205-R Right-Hand Padded Folding Shower Seat
This right-hand, L-shaped seat folds up when not in use and operates manually with one hand. It has an off-white Naugahyde-covered cushion and a Type 304 satin-finish stainless steel frame, support legs, flanges, and bracket. The seat is 33 inches wide and projects 22-7/8 inches from the wall. ASI states that the model meets the 2010 ADA Accessibility Standards; verify suitability for the specific installation.
Installation and capacity
The seat is surface-mounted. Before wall finishing, provide a concealed anchor plate or blocking as required by the construction documents or local codes. The anchor plate or blocking and mounting hardware are not supplied. ASI lists a maximum support load of 500 pounds when properly installed.
