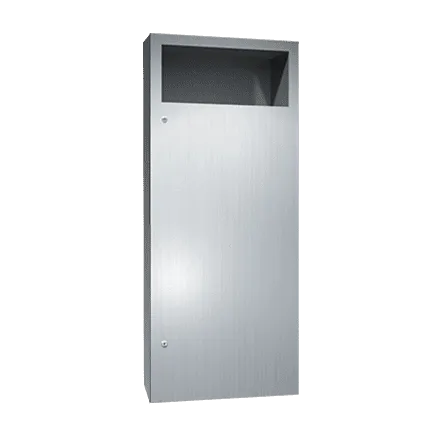

ASI 6474-2 Simplicity Semi-Recessed Waste Receptacle
The ASI 6474-2 is a 12-gallon, semi-recessed stainless steel washroom waste receptacle with a 2-inch collar. Its two tumbler locks secure the door, while waste is placed through the upper opening and the container is emptied manually.
Specifications and installation
- Capacity: 12 gallons (45.4 L).
- Material: Type 304 stainless steel with satin finish; the full-face door is 18 gauge and the cabinet is 20 gauge.
- Overall dimensions: 17-1/4 inches W x 40 inches H x 6-3/4 inches D.
- Recess requirements: Rough wall opening of 15-3/4 inches W x 38-1/2 inches H x 4-1/4 inches D minimum; the semi-recessed collar is 2 inches.
- Mounting: Secure in the wall recess through the cabinet mounting holes with four #10 self-threading screws (by others).
- Access and service: Waste enters through the upper opening. Empty the container manually as maintenance needs require; the locked door prevents unauthorized access or removal.
ASI installation guidance for compliance with the 2010 ADA Accessibility Standards specifies installing the unit with its top edge no higher than 48 inches above finished floor (AFF).
