ASI-1224-48
Rod is fabricated of alloy 18-8 stainless steel, type 304, No.20 gauge 1" dia. tubing.
Rod is installed in straight section between two (2) mounting flanges. Rods longer than 72" (1829mm) require ceiling hanger Model No. 1224-C18. For use with standard shower curtain Model No's 1200 or 1200-V having 72" (1829mm) length and standard hooks Model No. 1200-SHU unit should be installed with rod centerline 74-1/2" (1892mm) AFF or 67" (1702mm) above tub rim to obtain 6" (152mm) bottom overlap.
Concealed Mounting Flanges (Part 1224-1) are chrome plated brass with a satin finish. Pair of flanges consist of a wall mounting lug and a locking sleeve. One sleeve includes locking screw to prevent rod rotation. Mounting lugs provided with (2) mounting holes to accept #10 round or pan head screws (furnished by others).
Product Overview

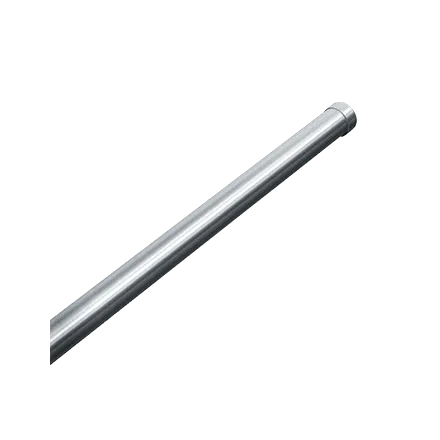

The ASI 1224-48 Shower Curtain Rod is a robust solution for commercial restroom applications, combining durability with practical functionality. Measuring 48 inches in length, this stainless steel rod is designed to securely support standard shower curtains, making it an essential component for any commercial restroom setup.
Key Features
- Constructed from 18-8 stainless steel for lasting durability
- Concealed mounting flanges reduce visible hardware for cleaner aesthetics
- Easy installation with included mounting lugs and locking sleeves
- Standard size compatibility with popular shower curtain models
- Prevent rod rotation for reliable operation during high-use scenarios
