ASI-105-14

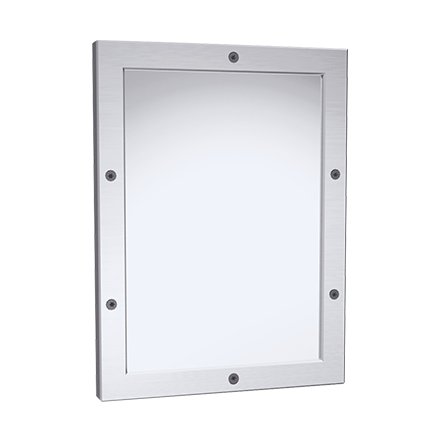

ASI 105-14 Framed Mirror
This surface-mounted mirror has a 20-gauge Type 304, alloy 18-8 stainless steel mirror polished to a #8 finish, with a 14-gauge Type 304 stainless steel frame in a satin finish. The unit measures 12" W x 16" H x 5/8" D; the frame corners are welded and ground smooth.
Front mounting uses six supplied 1/4-20 x 2" vandal-resistant pin-Torx machine screws. Suitable anchors or alternate wall preparation are by others. The manufacturer suggests a maximum frame-top height of 74" AFF for general service; its sheet states that, for compliance with the 2010 ADA Accessibility Standards, the bottom edge of the reflecting surface should be no higher than 40" AFF.
