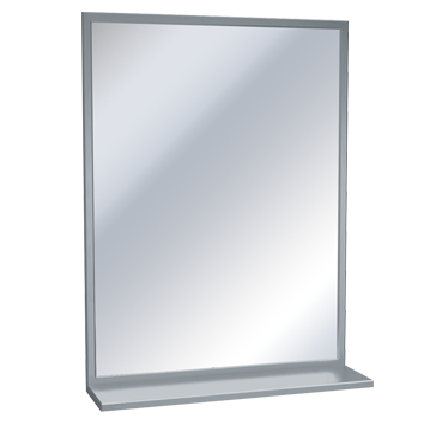

ASI 0605-7236 Stainless Steel Angle Frame Mirror with Shelf
The ASI 0605-7236 is the 72 x 36-inch configuration of ASI's surface-mounted 0605 mirror series, with a 5-inch-wide welded shelf. The frame and shelf are 18-gauge Type 304 stainless steel with a satin finish; the shelf edges are returned and hemmed.
Specifications and installation
- Frame and shelf: 18-gauge Type 304 stainless steel with unitized welded construction; frame corners are welded and polished.
- Standard mirror glazing: 1/4-inch plate glass, warranted against silver spoilage for 15 years from the invoice date.
- Shelf: 5 inches wide and welded to the face frame, with returned and hemmed edges.
- Mounting: Install the bracket level and plumb with #10 self-threading screws supplied by others; hang the mirror and tighten the top and bottom locking screws.
ASI's installation guidance for accessibility specifies that the bottom edge of the reflecting surface should be no higher than 40 inches above the finished floor. Confirm placement and mounting support before installation.
