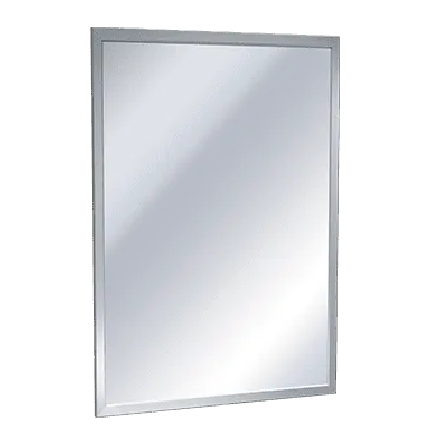

ASI 0600-2618 Inter-Lok Angle Frame Mirror, 26" W x 18" H
This surface-mounted mirror has plate glass in a satin-finish frame made from 3/4" x 5/8" roll-formed, 18-gauge type 304 stainless steel. The frame corners are heliarc-welded, ground and polished smooth. A concealed hanging bracket locks to the top and bottom of the frame with tamper-proof set screws; a one-piece back plate attaches to the frame with a theft-resistant locking device.
Installation
Install the bracket level and plumb using #10 self-threading screws (by others), hang the mirror, then tighten the top and bottom locking screws. The manufacturer’s guidance for compliance with 2010 ADA Accessibility Standards and 2015 ABA Standards is to position the bottom edge of the reflecting surface no higher than 40" above finished floor.
