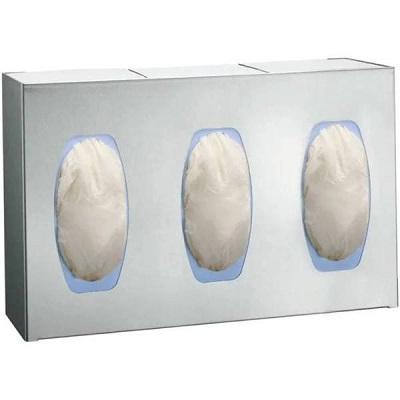

ASI 0501-3 Three-Box Surgical Glove Dispenser
The ASI 0501-3 is a surface-mounted dispenser for three standard-size surgical glove boxes. Its Type 304 satin-finish stainless steel body has a fully deburred dispensing opening; gloves self-feed until the supply is depleted and are not included.
Capacity, fit, and installation
- Box capacity and fit: Holds three boxes and fits most standard boxes up to 5 inches wide × 10 inches high × 3-3/4 inches deep.
- Overall dimensions: 15-3/4 inches wide × 10 inches high × 3-3/4 inches deep.
- Construction: Box body and back are 20-gauge Type 304 stainless steel with a satin finish.
- Mounting: Surface-mount on a wall or partition. Hang on two pre-installed #10 self-threading screws, then secure through the two bottom holes with #10 self-threading screws; screws and anchors are supplied by others.
- Mounting height: Manufacturer recommends placing the top of the dispenser 48–60 inches above the finished floor. Its 2010 ADA installation guidance calls for the dispensing slot to be no more than 48 inches above the finished floor; this is installation guidance, not a guarantee of project compliance.
- Warranty: Manufacturer lists one year from the invoice date.
