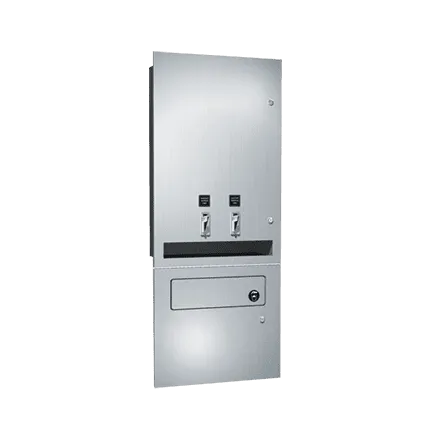

ASI 04684-TM-F Recessed Dual Napkin and Tampon Vendor with Disposal
The -F version operates free (no coin) and dispenses 15 single, boxed napkins and 23 cylinder tampons of the specified sizes. The unit has a 1.9-gallon waste receptacle. The napkin and tampon dispensers operate independently; -25 and -50 versions provide 25-cent and 50-cent operation. Dispensing mechanisms are fastener-mounted internally to allow denomination changes.
The Type 304 stainless steel unit has a satin finish and measures 17-1/4 inches W x 43-3/8 inches H x 4-1/2 inches D. Two tumbler locks secure the doors; the internal coin box is keyed differently from the door locks.
Installation and servicing
- Requires a wall recess with a minimum rough opening of 16 inches W x 42 inches H x 4 inches D. Mounting uses #10 self-threading screws, supplied by others.
- Napkins are single, cardboard-boxed products measuring 4-1/4 x 3 x 1-1/8 inches. Tampons are cardboard cylinders measuring 3/4 inch in diameter x 5-1/4 inches.
- Supplied track weights must be used for positive feed. Reload products manually through the door as needed; the empty indicator blocks the coin slot when product is depleted. Empty the waste receptacle manually as maintenance needs require.
