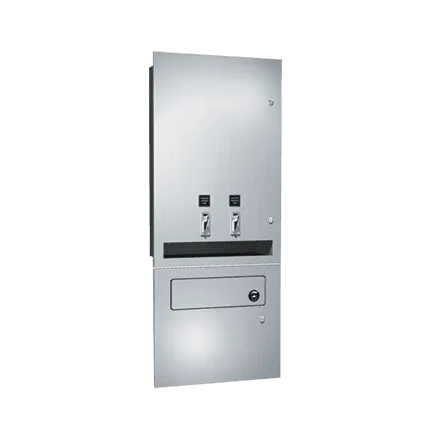

ASI 04684-TM-50 Recessed Dual Napkin and Tampon Vendor with Disposal
The ASI 04684-TM-50 is a recessed, 50-cent dual feminine hygiene vendor with an integrated waste receptacle. It dispenses up to 15 napkins and 23 tampons; the two dispensing mechanisms operate independently.
Capacity, construction, and operation
- Capacity: 15 single, boxed napkins and 23 cylinder tampons of specified sizes; waste receptacle capacity: 1.9 gallons.
- Construction: Type 304 stainless steel with a satin finish. Overall dimensions are 17-1/4 inches W x 43-3/8 inches H x 4-1/2 inches D.
- Deposit the specified 50-cent coin and actuate the selected mechanism; the product drops into the vending opening. When a product is depleted, an indicator shows empty and blocks the coin slot.
- Two tumbler locks secure the doors. The internal coin box is keyed differently from the door locks.
Installation and servicing
Plan for a minimum rough wall opening of 16 inches W x 42 inches H x 4 inches D. The unit mounts in the wall recess with #10 self-threading screws, supplied by others; confirm that the recess is available before specifying the unit.
- Refill the supply tracks manually through the locked door as needed. Use the supplied track weights for positive feed.
- Empty the waste receptacle manually as maintenance needs require.
